Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm Impreza 2.0 AWD (GC8)

1.686,14
(Price excluding VAT): 1.393,50
Stock:
0 Items
Item No.:
KSU23531-2G

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm Impreza 2.0 AWD (GC8)

Contact us for installation, availability or other possible clutch models.

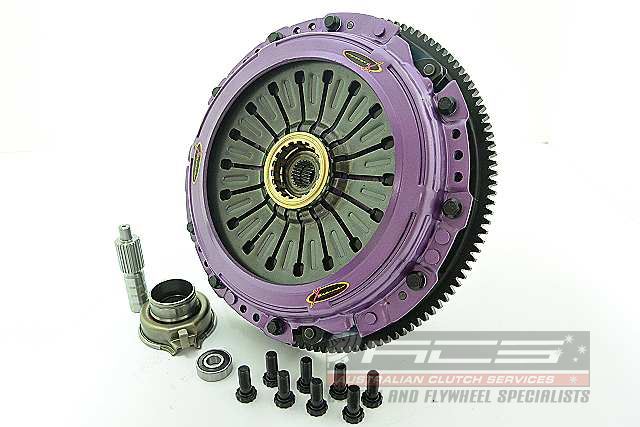

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Xtreme Motorsport

Clutch Disc Diameter (mm): 230

Clutch Disc Spline Count: 24

Clutch Disc Spline Diameter (mm): 25.2

Torque (Nm): 1380

Flywheel Step: -19.5mm

Design: Twin Plate

Stage: Multiplate - street use only

Tech Bulletins: TSB-PULL01TSB-SU01TSB-171

Clamp Load: 1650 kg

Recommended for: High horsepower street driven vehicles

Ring Gear Tooth count:

Additional information:

Fits:

- SUBARU/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) ,

- SUBARU/Impreza/2.0 AWD (GDB)/2005.10-2007.03/EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) ,

- SUBARU/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) ,

- SUBARU/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) ,

- SUBARU/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) ,

- SUBARU/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) ,

- SUBARU/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) ,

- SUBARU/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) ,

- SUBARU/Impreza/2.0 WRX STi AWD (GGB)/2000.10-2002.10/EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) ,

- SUBARU/Impreza/2.0 WRX Turbo AWD (GDA) 6 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) ,

- SUBARU/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) ,

- SUBARU/Impreza/2.5 AWD/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) ,

- SUBARU/Impreza/2.5 AWD (GDF)/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) ,

- SUBARU/Impreza/2.5 i WRX STI AWD/2005.09-2007.12/EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) ,

- SUBARU/Impreza/2.5 STI CS400 AWD (GRF)/2010.04-2013.08/EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) ,

- SUBARU/Impreza/2.5 WRX STI 330S AWD/2009.05-2010.12/EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) ,

- SUBARU/Impreza/2.5 WRX STi AWD (GDF)/2005.09-2007.12/EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) ,

- SUBARU/Impreza/2.5 WRX STI AWD (GRF)/2008.01-2013.08/EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) ,

- SUBARU/Impreza/2.5 WRX STI AWD (GVF)/2010-2014/EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) ,

- SUBARU/WRX sedan/STi 2.5 AWD/2014.06-/EJ257 2457 Petrol 221 kW 301 BHP (2014.06 -) ,
