Clutch Kit - Xtreme Performance Race Sprung Ceramic 1650Kg 1170Nm LANCER 2.0 i Ralliart 4WD (CY4A)

1.051,73
(Price excluding VAT): 869,20
Stock:
0 Items
Item No.:
KMI24011-1R

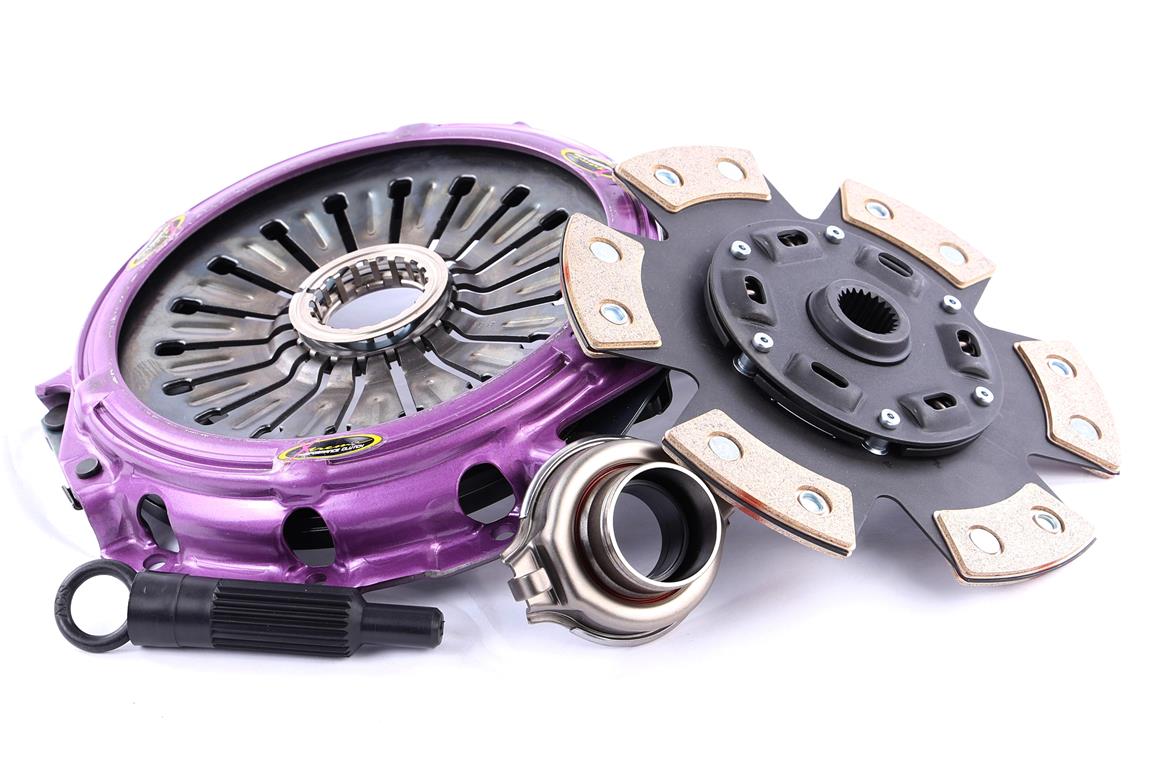

Clutch Kit - Xtreme Performance Race Sprung Ceramic 1650Kg 1170Nm LANCER 2.0 i Ralliart 4WD (CY4A)

Contact us for installation, availability or other possible clutch models.
Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

Specifications:
  • Torque capacity 1170Nm
  • Clamp load 1650Kg Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Xtreme Performance

Clutch Disc Diameter (mm): 240

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 1170

Flywheel Step: 0

Design: Single Plate

Stage: Stage 2R

Tech Bulletins: TSB-MI04TSB-PULL01

Clamp Load: 1650Kg

Recommended for: Race Vehicles - Stage 2R

Ring Gear Tooth count:

Additional information:

Fits:

- MITSUBISHI/LANCER/2.0 i Ralliart 4WD (CY4A)/2008.10-/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 -) ,

- MITSUBISHI/LANCER/2.0 Ralliart 4WD (CX4A)/2008.10-/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 -) ,

- MITSUBISHI/LANCER/EVO X - FQ400 (CZ4A)/2009.05-2010.12/4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12) ,

- MITSUBISHI/LANCER/EVO X - FQ440 (CZ4A)/2014.05-2014.06/4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06) ,

- MITSUBISHI/LANCER/EVO X (CZ4A)/2008.06-2015.03/4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03) ,

- MITSUBISHI/LANCER/EVO X (CZ4A)/2008.06-2015.12/4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12) ,

- MITSUBISHI/LANCER/EVO X (CZ4A)/2014.09-2015.12/4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12) ,
