086195A: Full suspension bush kit SPORT

Name: 086195A: Full suspension bush kit SPORT
Brand: Strongflex
Price: 344.41 EUR
Availability: InStock

€382,67 €344,41

Price excluding VAT: €284,63

You Save: 10%

Stock:

0 Items

Item No.:

086195A

SKU:

086195A: Full suspension bush kit SPORT

For installation of "086195A: Full suspension bush kit SPORT" or order of the black urethane variant, please contact us! Usually 1 week delivery time if there is no stock.

For the product options below, let us know which version you need in the order commentary.

Front ARB diameter

23mm, 25,4mm, 27mm, 27,2mm or 30mm

Rear ARB diameter

12mm, 15mm, 17mm, 18mm, 19mm, 21mm or 22mm

081578 - 081579

2 x 081578 , 2 x 081579 or 4 x 081578

Śruba 081575 / 081576

12mm or 14mm

Śruba 081575

12mm or 14mm

Śruba 081576

12mm or 14mm

More Strongflex | More Subframe and suspension arms

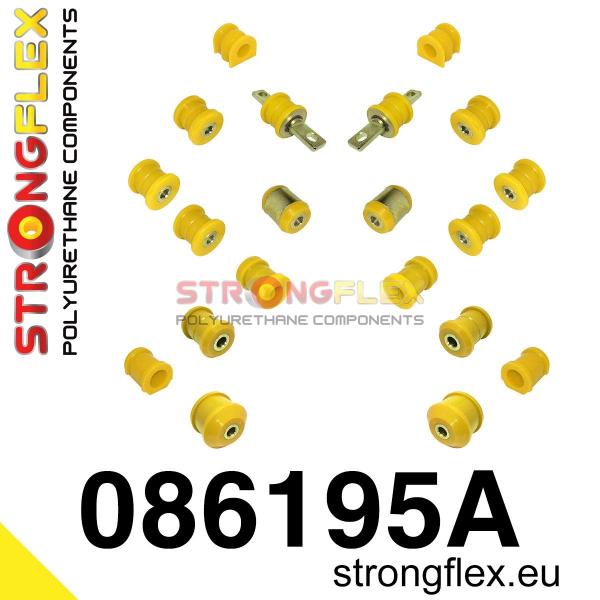

KIT ID: 086195A

Name: Full suspension bush kit SPORT

Fit:: Acura RSX 01-06; Honda Civic 01-06 EP1 EP2 EP3 EP4 EU5 EU6 EU7 EU8 EU9 EV1 EM2 ES4 ES5; Honda CR-V 02-06; Honda Element 03-11; Honda Integra DC5 01-06

Include:: 2 x 081572A Front wishbone front bush SPORT; 2 x 081573A Front wishbone rear bush SPORT; 2 x 081580A Front anti roll bar bush SPORT

Diameters:: 23 , 25,4mm

2 x 081574A Rear trailing arm front bush SPORT

2 x 081575A Rear suspension inner lower bush SPORT

2 x 081576A Rear lower arm outer front bush SPORT

2 x 081577A Rear lower arm outer rear bush SPORT

2 or 4 x 081578A Rear suspension bush SPORT*

2 or 0 x 081579A Rear upper arm inner bush SPORT*

2 x 081581A Rear anti roll bar bush SPORT

Diameters:: 12,15,17,18,19mm

Pcs/prod: 20

Required/car: 1

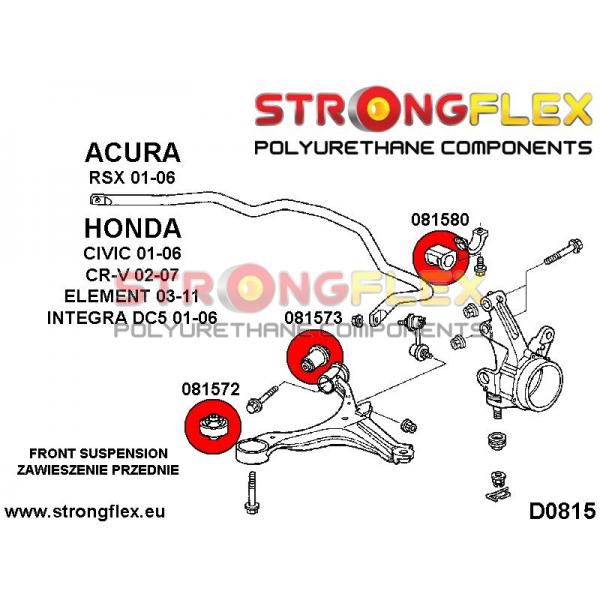

Diagrams:: D0815; D0816

NOTE!
Before buying bush, select the right combination for your model.
Fixing screws bushes are available in several sizes.
Civic
081575, 081576 - 12mm
CR-V
081575, 081576 - 12mm
Element
081575, 081576 - 14mm
Integra
081575, 081576 - 12mm

NOTE!

*Depending on the model, you need 2 x 081578A and 2 x 081579A or 4 x 081578A for the car.

2 x 081578 i 2 x 081579
ACURA - RSX 01-06
HONDA - CIVIC 01-06, INTEGRA 01-06

4 x 081578
HONDA - CRV 02-07, ELEMENT 03-11

Before adding to the basket, check the quantity needed for your model.
(see the attached diagram D0816)

Measure Anti Roll Bar diameter before placing order.

NOTE!
For mounting bush 081574 you need reuse old metal parts from your original bushes.
Details of the assembly shown in the attached photo.
