086170B: Rear suspension bush kit

246,92 222,23
Price excluding VAT: 183,66
You Save: 10%
Stock:
0 Items
Item No.:
086170B

086170B: Rear suspension bush kit

For installation of "086170B: Rear suspension bush kit" or order of the black urethane variant, please contact us! Usually 1 week delivery time if there is no stock.

For the product options below, let us know which version you need in the order commentary.

Rear ARB diameter
12mm, 15mm, 17mm, 18mm, 19mm, 21mm or 22mm
081578 - 081579
2 x 081578 , 2 x 081579 or 4 x 081578
Śruba 081575 / 081576
12mm or 14mm

KIT ID: 086170B

Name: Rear suspension bush kit

Fit:
Acura RSX 01-06
Honda Civic 01-06 EP1 EP2 EP3 EP4 EU5 EU6 EU7 EU8 EU9 EV1 EM2 ES4 ES5
Honda CR-V 02-06
Honda Element 03-11
Honda Integra DC5 01-06

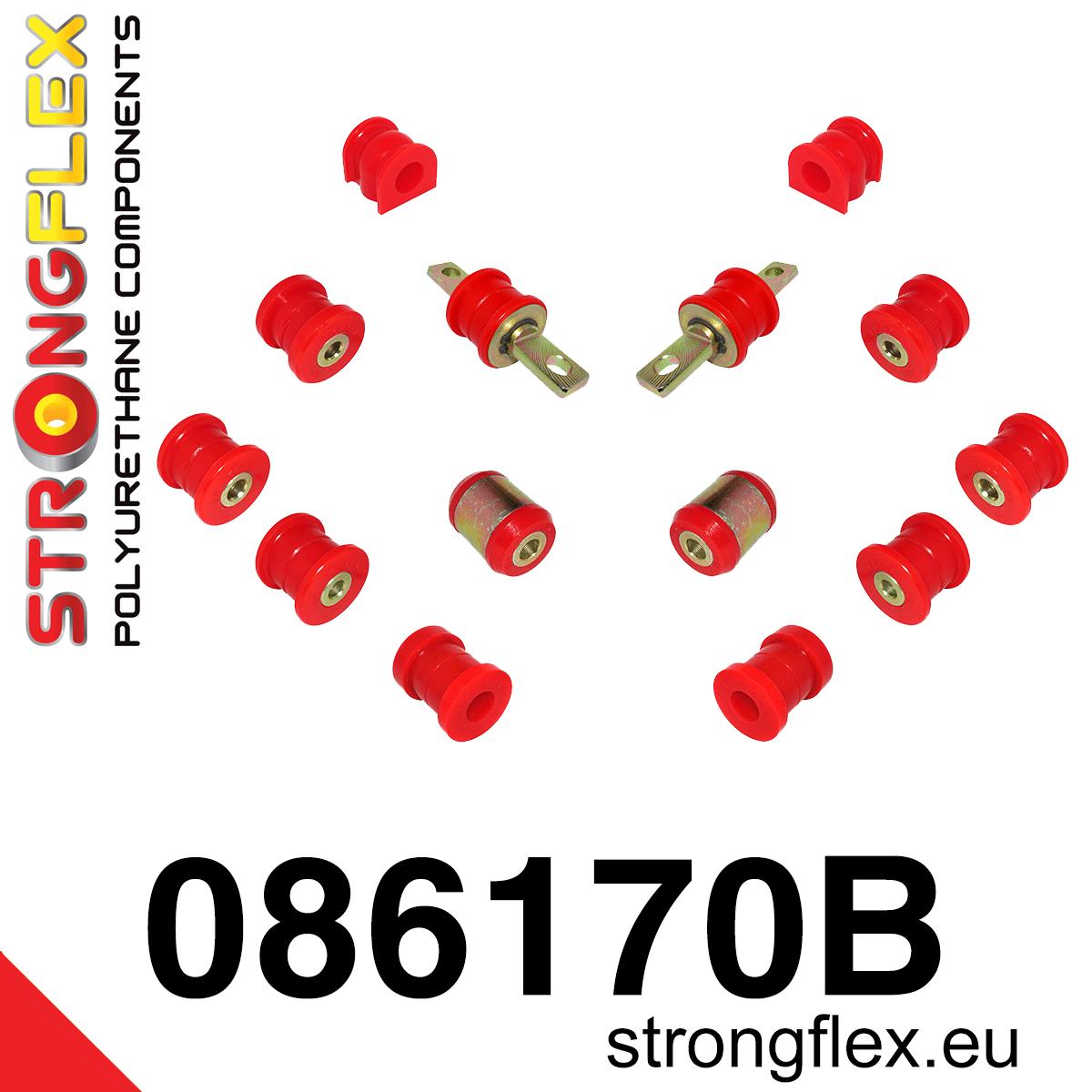

Include:
2 x 081574B Rear trailing arm front bush
2 x 081575A Rear suspension inner lower bush
2 x 081576A Rear lower arm outer front bush
2 x 081577A Rear lower arm outer rear bush
2 or 4 x 081578A Rear suspension bush*
2 or 0 x 081579A Rear upper arm inner bush*
2 x 081581B Rear anti roll bar bush
Diameters:
12,15,17,18,19mm

Pcs/prod: 14

Required/car: 1

Diagrams:
D0816
  • NOTE!
    Before buying bush, select the right combination for your model.
    Fixing screws bushes are available in several sizes.

  • Civic
    081575, 081576 - 12mm

  • CR-V
    081575, 081576 - 12mm

  • Element
    081575, 081576 - 14mm

  • Integra
    081575, 081576 - 12mm


NOTE!

*Depending on the model, you need 2 x 081578B and 2 x 081579B or 4 x 081578B for the car.

2 x 081578 i 2 x 081579
ACURA - RSX 01-06
HONDA - CIVIC 01-06, INTEGRA 01-06

4 x 081578
HONDA - CRV 02-07, ELEMENT 03-11

Before adding to the basket, check the quantity needed for your model.

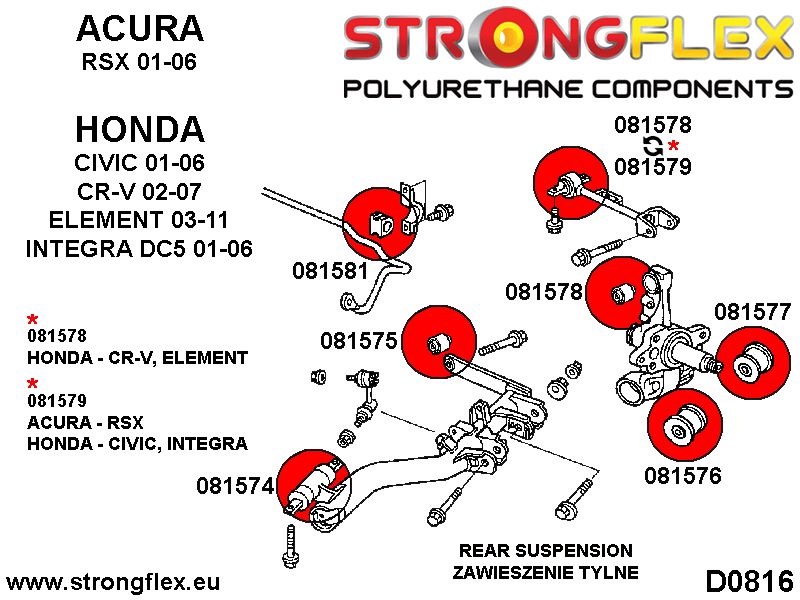

(see the attached diagram D0816)

Measure Anti Roll Bar diameter before placing order.

NOTE!
For mounting bush 081574 you need reuse old metal parts from your original bushes.
Details of the assembly shown in the attached photo.



Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!

Bij het afronden van de bestellen, voor de volgende opties in het commentaar veld aangeven welke voor u van toepassing is:

achter Stabilisatorstang:12mm, 15mm, 17mm, 18mm, 19mm, 21mm

081578 - 081579:4 x 081578, 2 x 081578 , 2 x 081579
