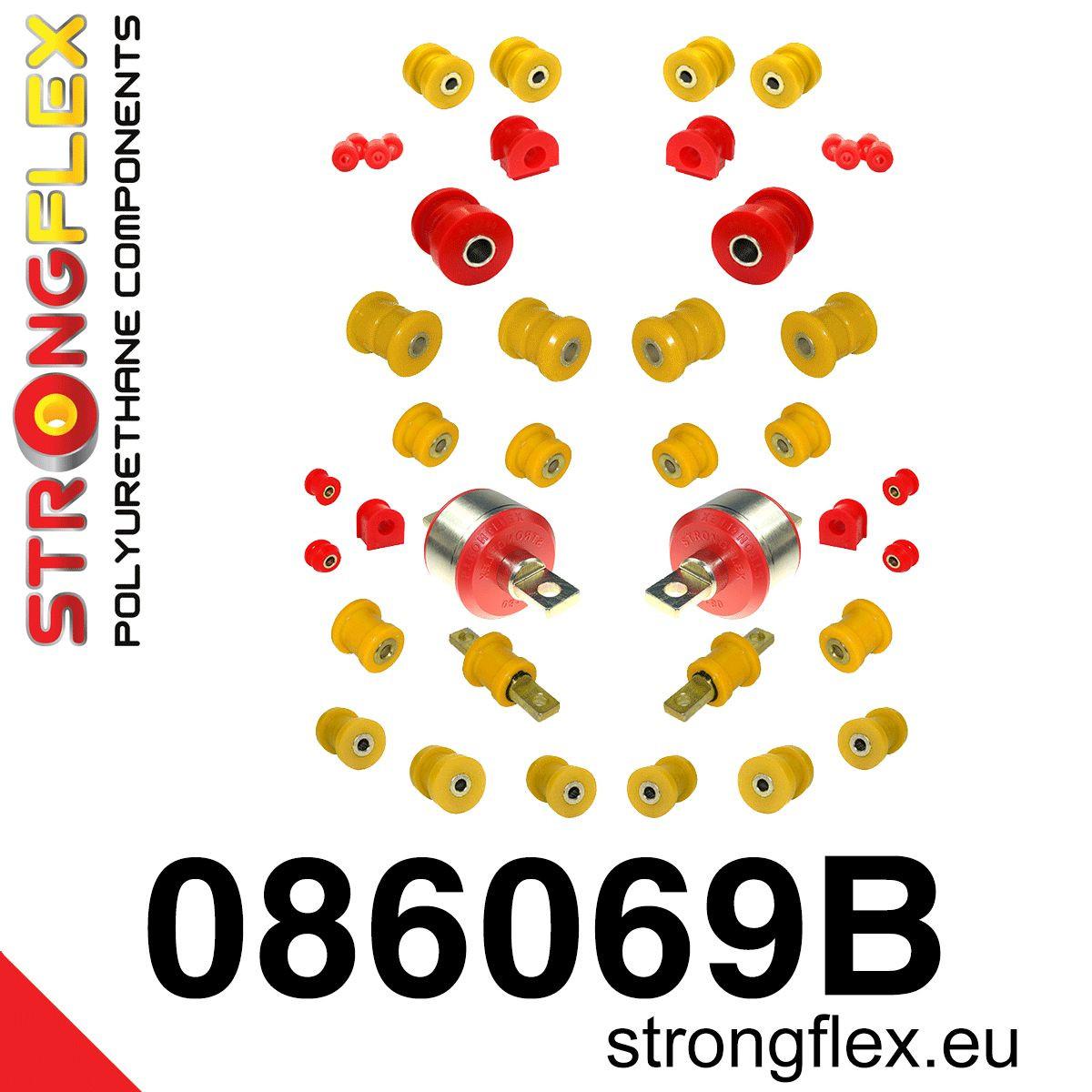

KIT ID: 086069B
Name: Full suspension bush kit
Fits:
- Honda Civic 91-95
- Honda CRX del Sol 92-97
Include:
- 4x 081100A Front upper wishbone bush SPORT
- 2x 081094A Front wishbone outer bush SPORT
- 2x 081095A Front wishbone inner bush SPORT
- 2x 081118B Front lower wishbone rear bush
- 8x 081109B Front eye bolt mounting bush
- 2x 081097B Anti roll bar bush 18-26mm
- Notes: Measure Anti roll bush diameter before placing order
- 2x 081102A Rear lower shock mounting bush SPORT
- 4x 081108A Rear toe link arm bush SPORT
- 2x 081103A Rear upper outer link/hub bush SPORT
- 2x 081104A Rear trailing arm mount bush SPORT
- 2x 081105B Rear trailing arm mount bush
- 4x 081101A Outer arm to hub bush and inner track arm bush SPORT (not works with VTi models)
- or
- 4x 081107A Outer arm to hub bush and inner track arm bush SPORT
- Notes: Check size bush before order
- 2x 081171B Rear anti roll bar bush 13mm
- or
- 2x 081172B Rear Anti roll bar bush 15mm
- Notes: Measure Anti roll bush diameter before placing order
- 2x 081196B Rear anti rol bar link bush
- 2x 081521B Rear anti rol bar link bush
-
Pcs / KIT: 42
NOTES:
To mount the bush 081105B you need an outer metal ring from the old original bush.
The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.
Before purchase check front anti roll bar diameter (081097 18-26mm) and rear (081171 13mm or 081172 15mm). Also check rear lower control arm bush diameter (081101 31mm or 081107 35mm)
- Diagrams:

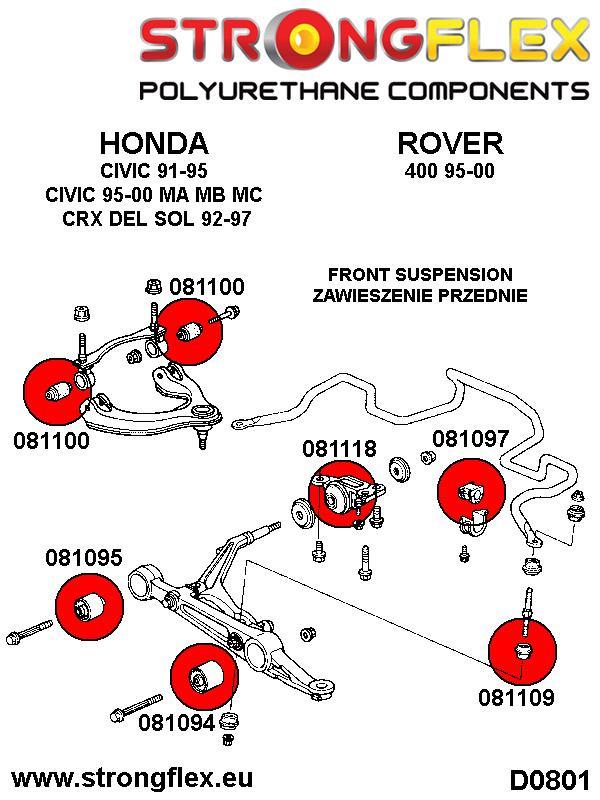

- D0801 Front suspension Polyurethane Honda Civic Rover 400

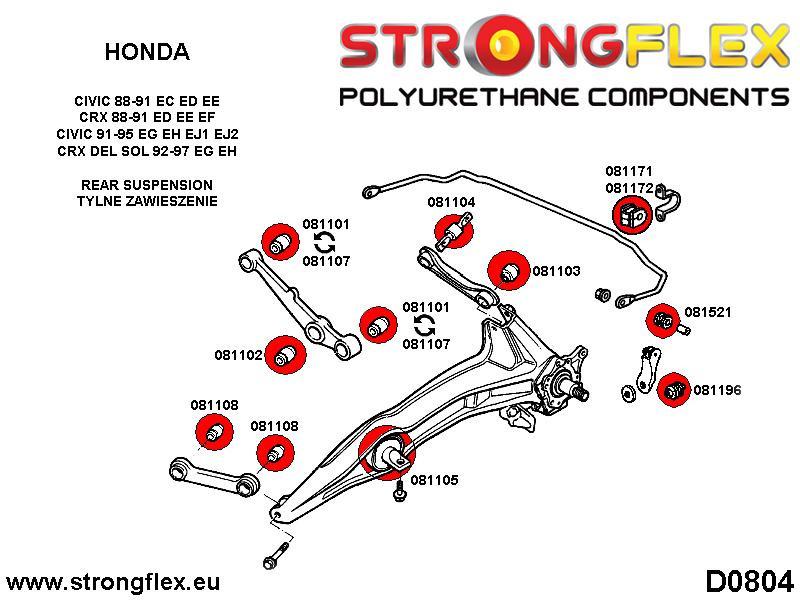

- D0804 Rear suspension Polyurethane Honda Civic CRX delSol

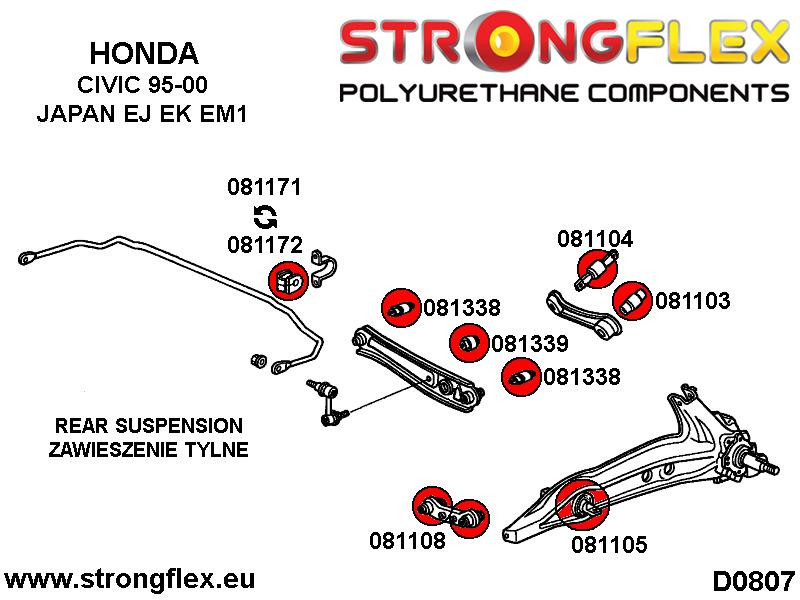

- D0807 Rear suspension Polyurethane Honda Civic 95-00 Japan EK9 EJ8 EJ6 EJ9 EM1
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
