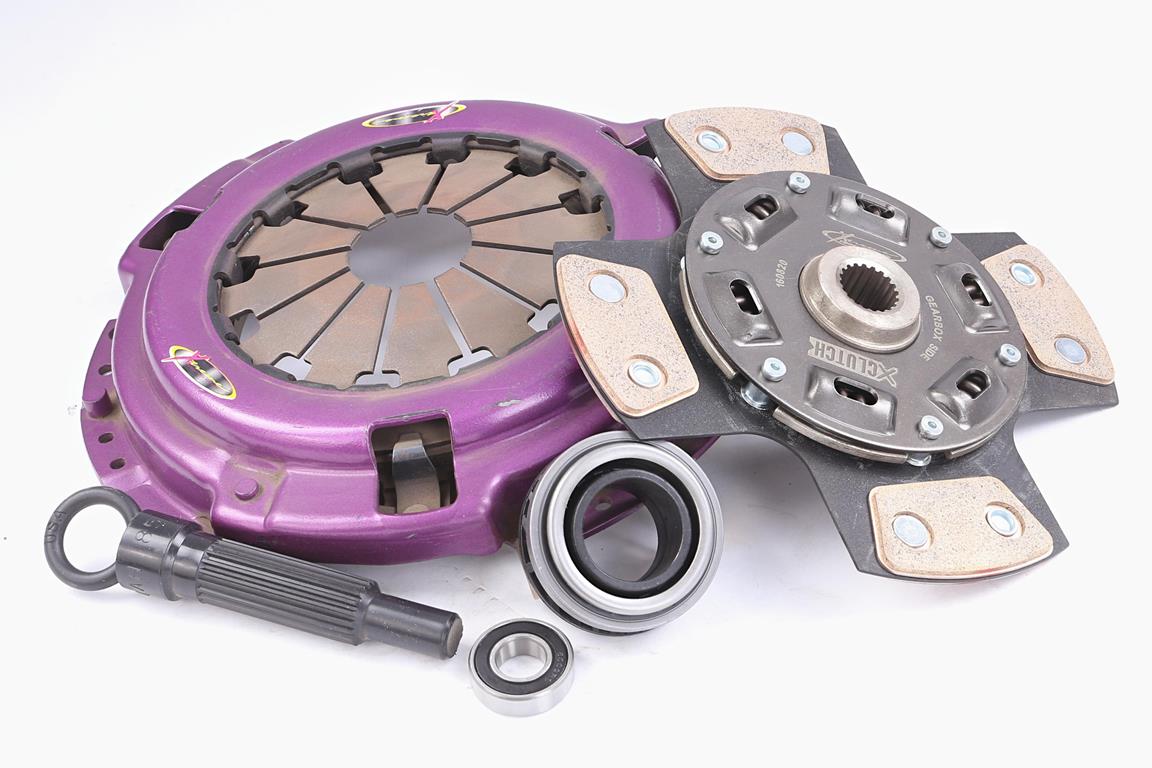

Clutch Kit - Xtreme Performance Race Sprung Ceramic 470Nm CIVIC IV 1.6 i 16V (ED4)

815,92
Price excluding VAT: 674,31
Stock:
0 Items
Item No.:
KHN21002-1R

Clutch Kit - Xtreme Performance Race Sprung Ceramic 470Nm CIVIC IV 1.6 i 16V (ED4)

Contact us for installation, availability or other possible clutch models.
Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

Specifications:
  • Torque capacity 470Nm
  • Clamp load Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Xtreme Performance

Clutch Disc Diameter (mm): 212

Clutch Disc Spline Count: 20

Clutch Disc Spline Diameter (mm): 22

Torque (Nm): 470

Flywheel Step: -1.5mm/.060""

Design: Single Plate

Stage: Stage 2R

Tech Bulletins:

Clamp Load:

Recommended for: Race Vehicles - Stage 2R

Ring Gear Tooth count:

Additional information:

Fits:

- HONDA/CIVIC IV/1.6 i 16V (ED4)/1987.10-1991.09/D16Z2 1590 Petrol 81 kW 110 BHP (1987.10 - 1991.09) ,

- HONDA/CIVIC V/1.6 si 16V (EG6)/1991.10-1993.10/D16A8 1590 Petrol 90 kW 122 BHP (1991.10 - 1993.10) ,

- HONDA/CIVIC V/1.6 si 16V (EH8)/1991.10-1993.10/D16A8 1590 Petrol 90 kW 122 BHP (1991.10 - 1993.10) ,

- HONDA/CRX II/1.6 i 16V (ED9)/1987.10-1989.12/D16A8, D16A9 1590 Petrol 96 kW 131 BHP (1987.10 - 1989.12) ,
