Description
Inlet:

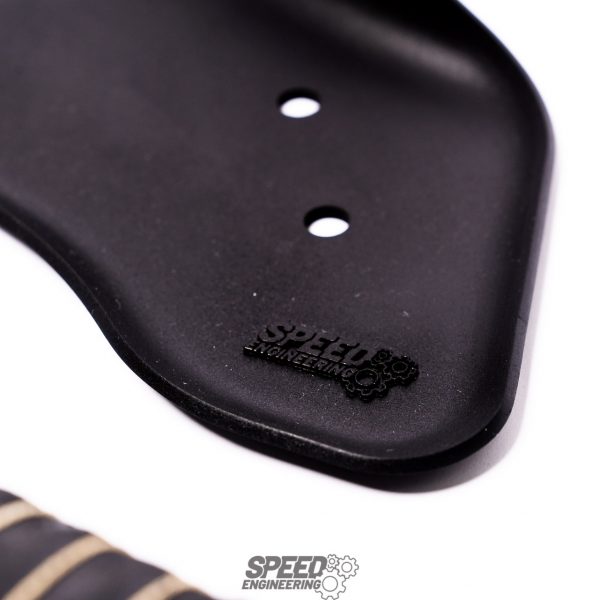

The Clubsport variant for the Mustang has optimized deflection blades for channeling the air into the center of the wheel. The OEM air blades are replaced by the Speed Engineering blades. It is strongly recommended that you also replace the anchor plate with the one from Speed Engineering, as this contains an opening at the point of impact of the air. Through this opening, the air can be drawn in via the brake disc and thus cooled more efficiently.
In this case it is necessary to work on the existing bumper. The supplied counter plate, so that the ventilation duct is screwed, also serves as a cutting template to create an opening in the plastic.
Outlet:
We use the channeling of the air flow to the center of the brake disc Use the turbine effect to cool the window from the inside. In doing so, we target the pane at an angle in order to avoid any wastage and to use the available air volume as efficiently as possible.
Due to the lightweight construction in combination with powdered aluminum, the component is sufficiently strong and at the same time light insensitive.
Your vehicle is not slow, that's a fact. However, this speed must be reduced as quickly as possible before the curve and this creates enormous heat. The ball joint of your wishbone is extremely close to the hot brake disc and will be affected over time. Therefore, this anchor plate has additional shielding for the bearing and thereby increases longevity.

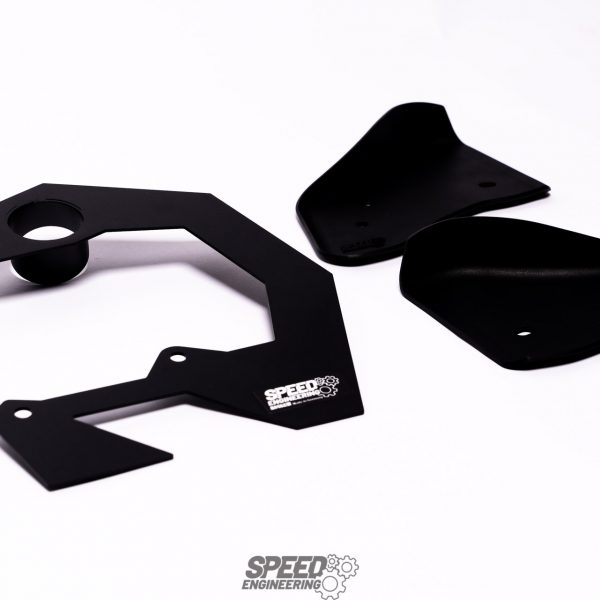

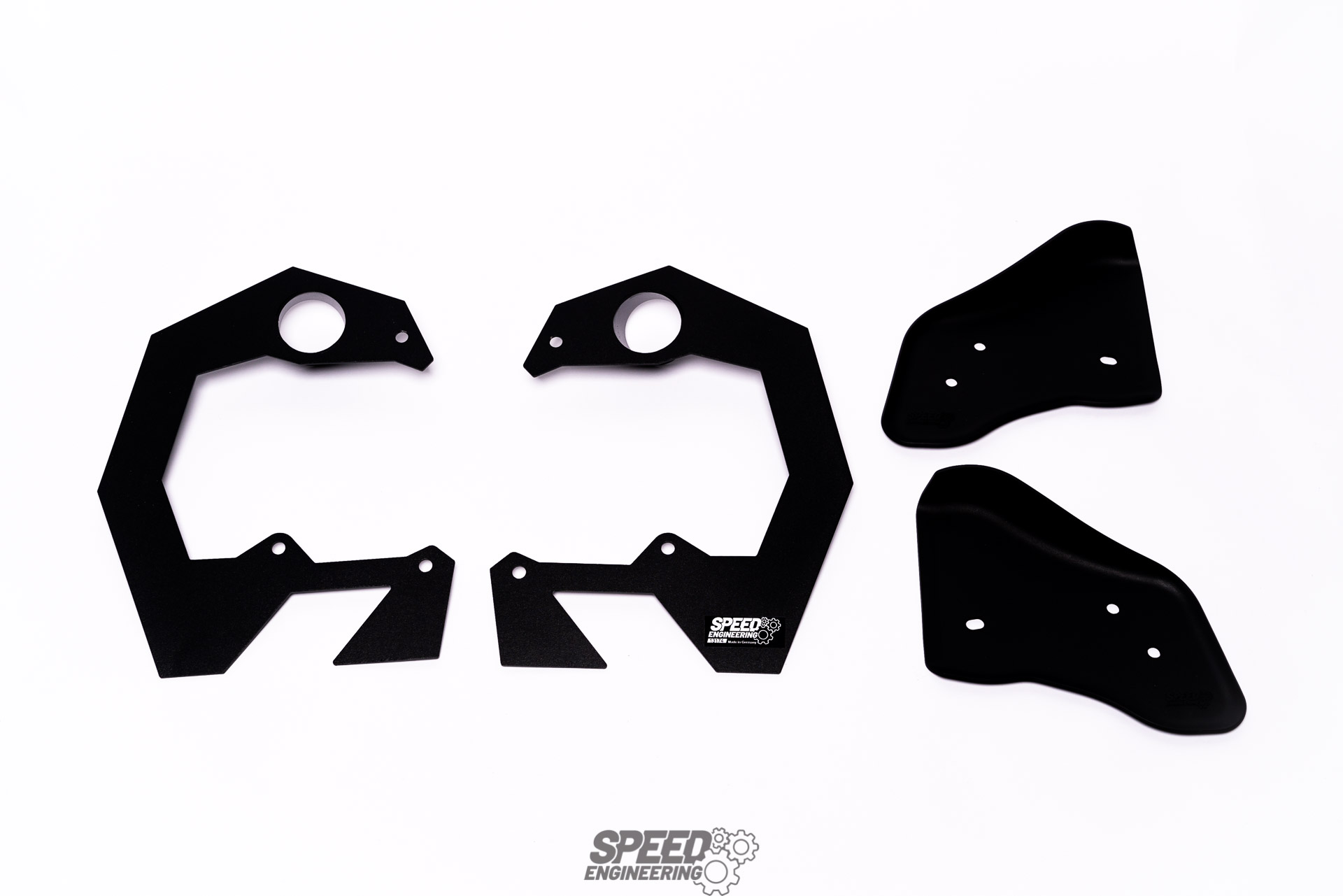

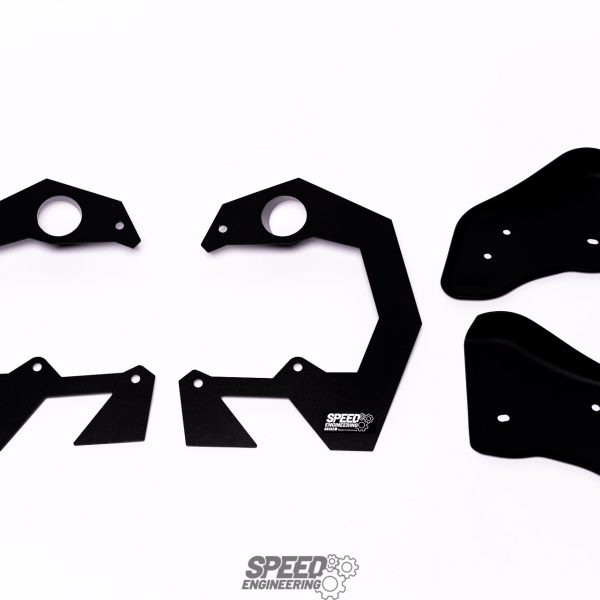

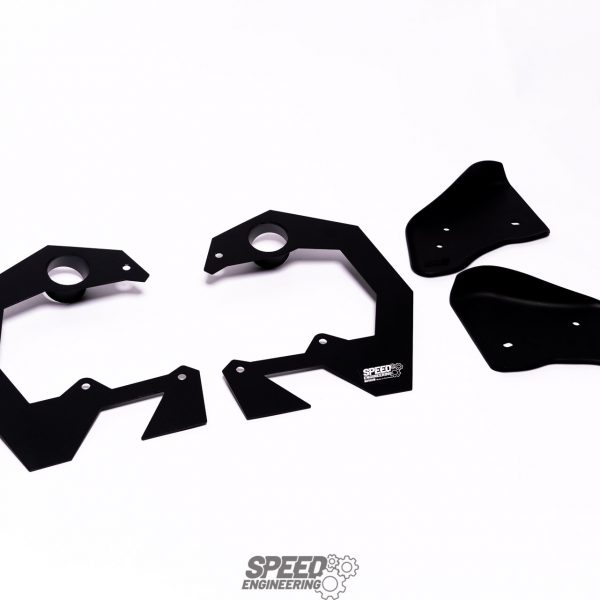

Included in delivery:
2x upgrade deflection blades (left and right)
2x anchor plates with cooling (left and right)
Item is suitable for
Ford Mustang GT Facelift from 2016
Motorsport parts without street approval We explicitly point out that none Our products offered for sale are original vehicle parts from the vehicle manufacturers BMW AG, M GmbH, MINI, VAG or other vehicle manufacturers. Naming the vehicle brands and models only serves to find the product and assign it to the appropriate vehicle type.
The different models vary slightly in the wheel position, coupled with different chassis geometries and wheel and tire combinations, it becomes impossible for us to cover all variants. In the worst case, the wheel could rest slightly at full steering angle (which should only be the case when parking), which could not cause any damage to the tire. In this case we were asked to forego the last ? of the steering turns.
