Description
The S55 engine in your BMW M2C has a special feature that reduces efficiency: it doesn't get any fresh air.
The S55 really has to do a lot, especially on the racetrack or after an increase in performance. The factory design of the intake is not really helpful because it ends directly behind the headlight, an area that is heated by the waste heat from the engine. Of course, the water intercooler does a great job, but there is a need for optimization here.
Find out more about what an optimized intake brings here
We help your engine get cooler air by providing a breakthrough create an area where the air is not only cooler, but there is also an overpressure area. The chosen geometry means that the air is not excluded from it. The rubber lip is removed from the OEM intake manifold on each side and a part of our intake is placed on it. Using the cutting template, a hole is cut in the side wall behind the kidney grille (the M4 with the same engine already has exactly these openings in these places) and the second part of the intake is screwed to the first. Your intake is now finished and optimized.
The parts are manufactured using a special process to ensure an optimal, smooth surface and to reduce the frictional resistance of the air to a minimum.

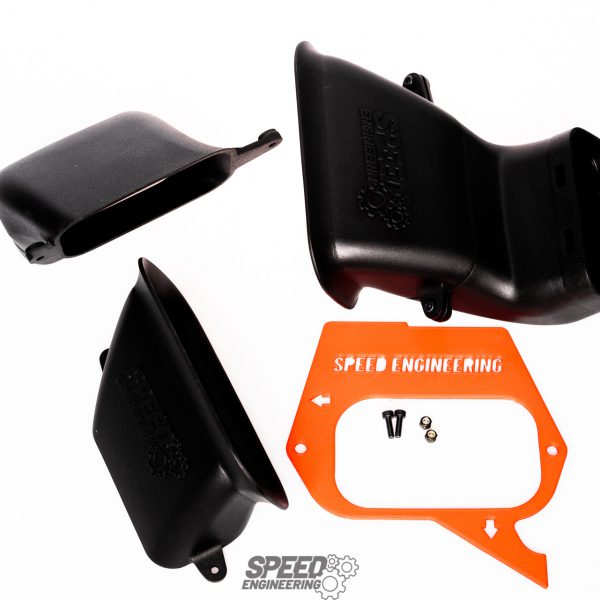

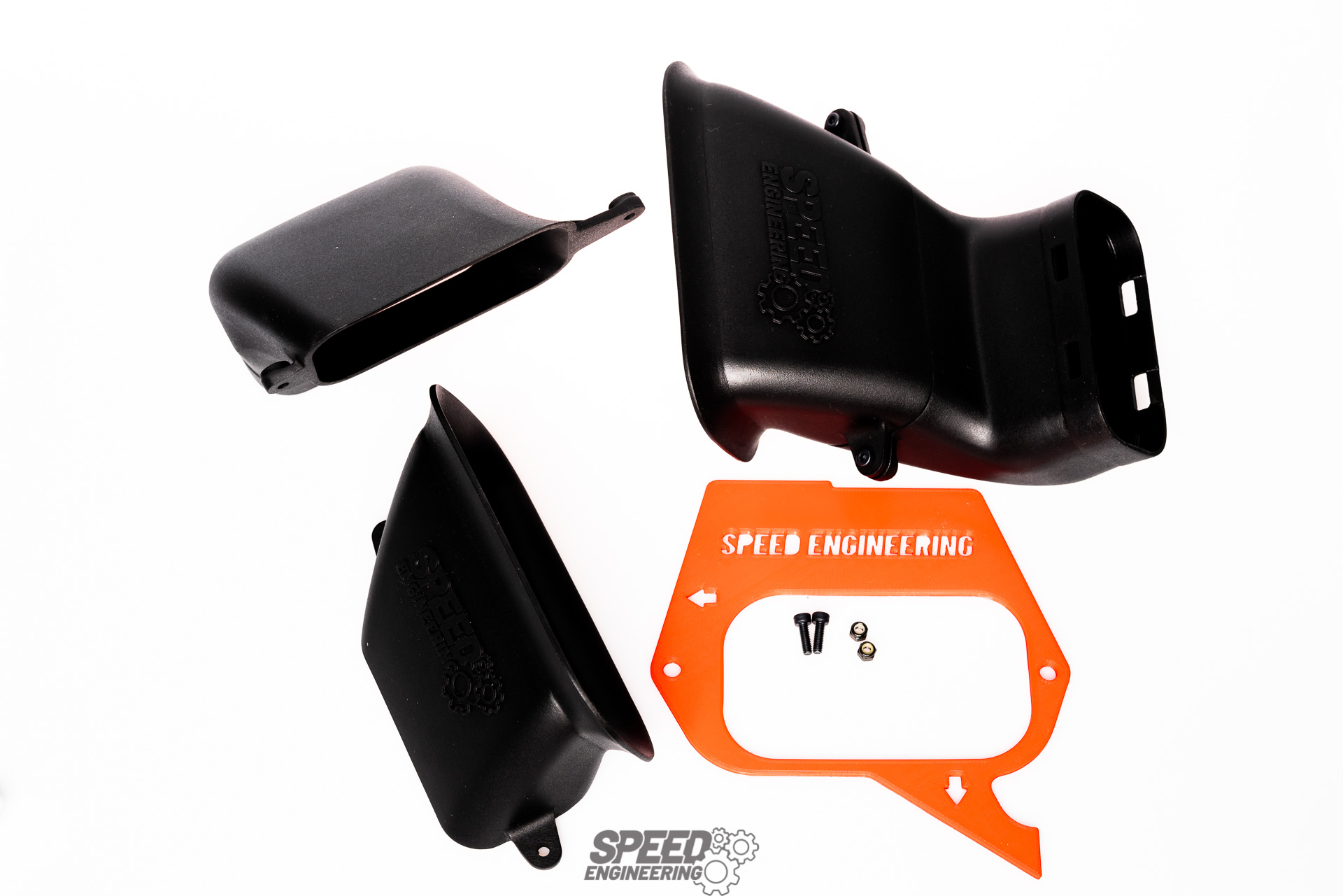

Im Scope of delivery
1x connection air duct on the left, 1x connection air duct on the right
1x inlet duct on the left, 1x inlet duct on the right

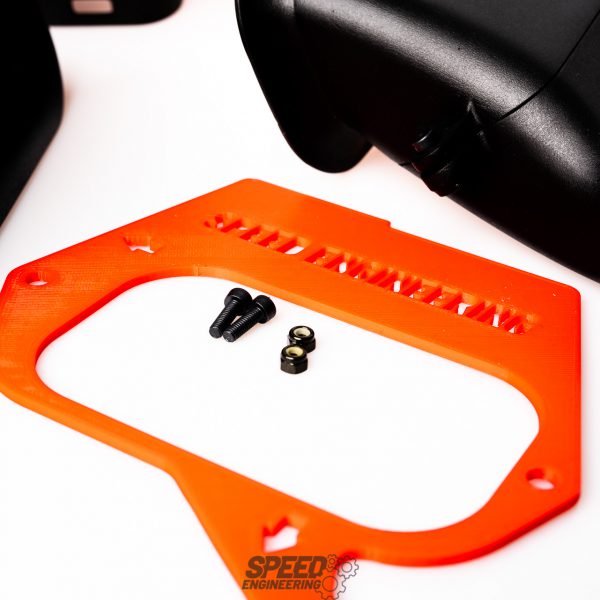

1x cutting template
4x screw + Nut
Installation instructions
Item is suitable for:
BMW F87N M2 Competition
This part can hardly be seen when installed, However, we would like to point out that this modification will invalidate the vehicle's operating license.
These parts are motorsport products that are not readily approved according to the German Road Traffic Act (StVO). An individual acceptance according to ?21 by the TuV is necessary for this. We explicitly point out that none of our products offered for sale are original vehicle parts from the vehicle manufacturers BMW AG, M GmbH, MINI, VAG or other vehicle manufacturers. Naming the vehicle brands and models only serves to find the product and assign it to the appropriate vehicle type.
