Double-plate cushioned organic clutch for original flywheel N54, N55, N62 B58

1.140,00
Price excluding VAT: 942,15
Stock:
0 Items
Item No.:
DK-110-01-TD

2-plate clutch system for original or original replacement flywheel

No adapter required
No pedal limitation or other adjustments required
Very strong torque damper (1000Nm+) protects the DMV when it goes into hde final stroke
No increased installation effort

The pressure plate used and modified is flatter than the original, allowing room for 2 plates.
An altered pressure point may occur but does not affect handling or power transmission.
A lot of power can be sent through our system and the original DMF remains available, so there are hardly any noises unless the DMF locks up or a single mass flywheel is used

Clutch system features:

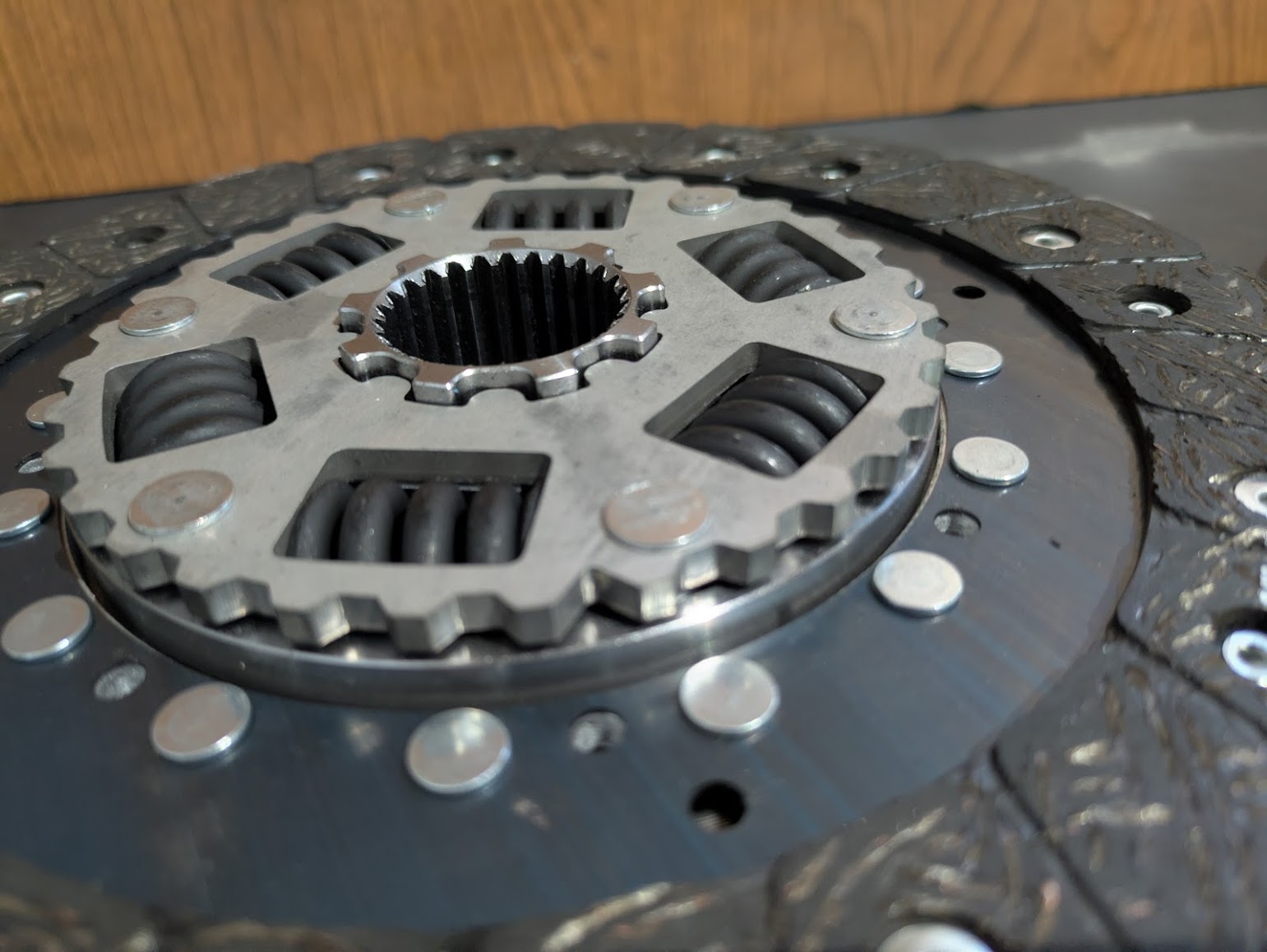

organic friction discs with torsion damper
Very good starting behavior and minimal wear (Good metering)
Hub profile: 32.5x35-26 teeth
Diameter 240mm
Pressure plate with alloy heat-treated steel insert
High-quality friction discs

Made in Germany

For single and double mass flywheels

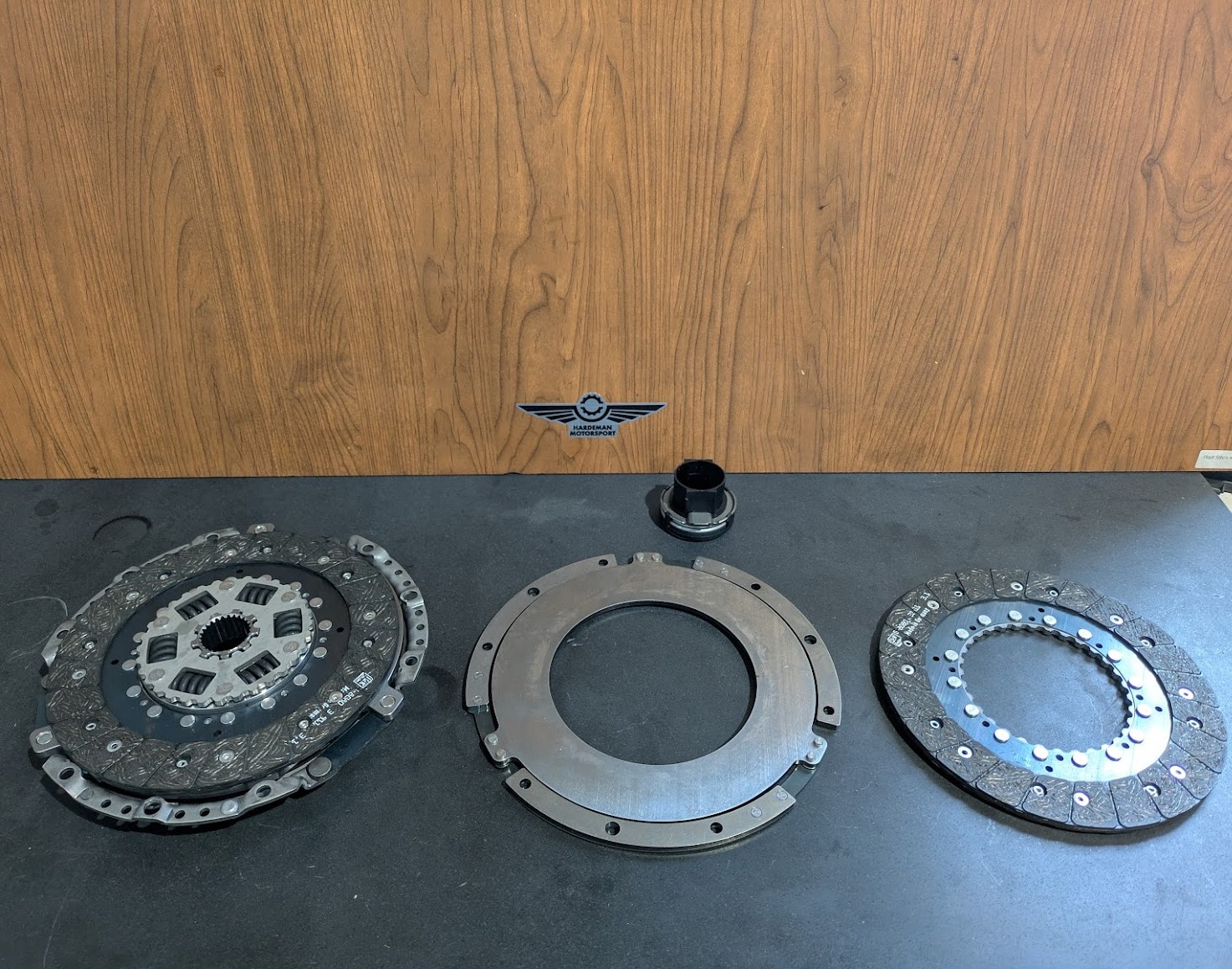

Set includes:

Pressure plate converted to a steel insert and finely balanced

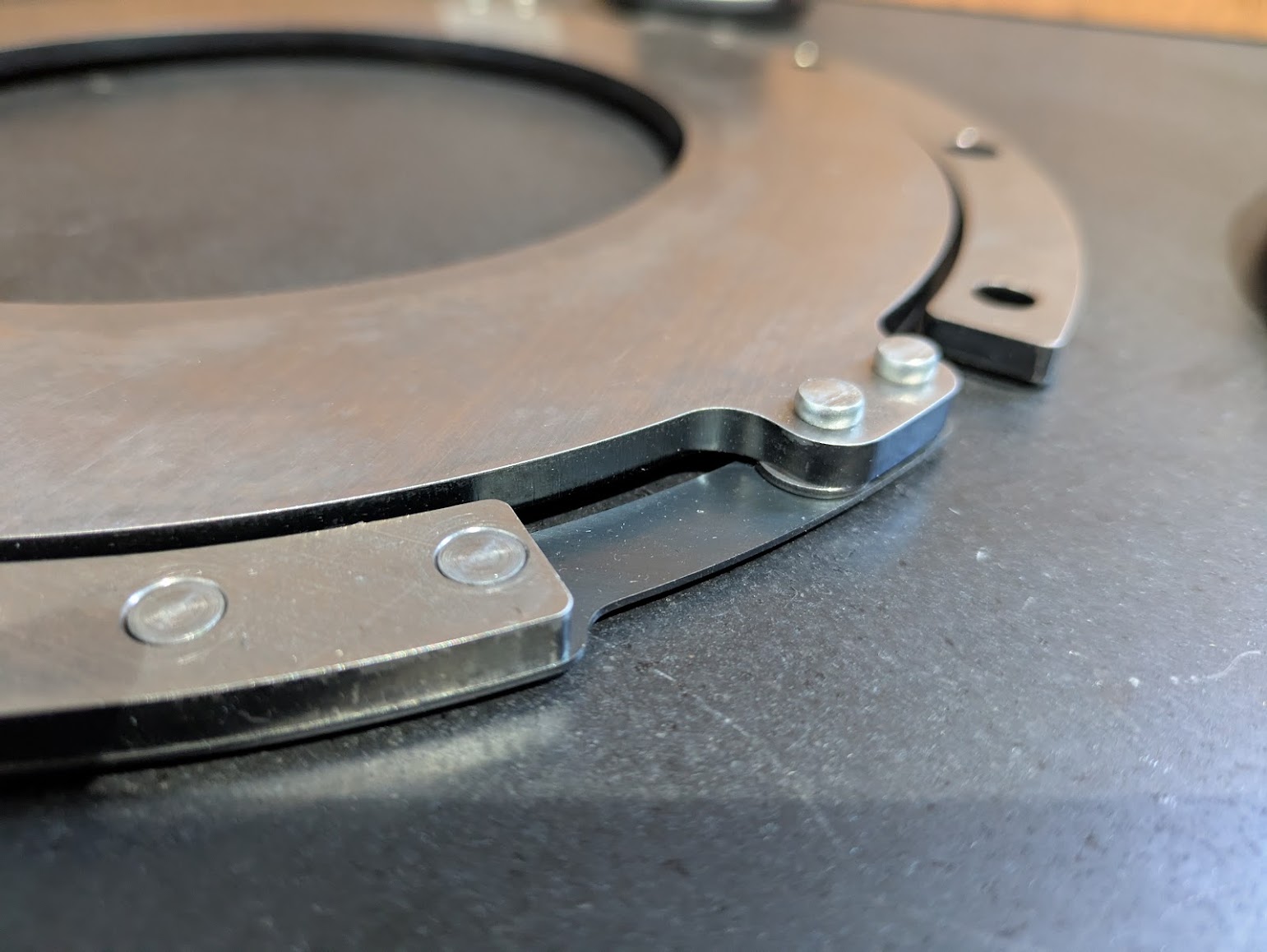

Spacer plate for the original DMF

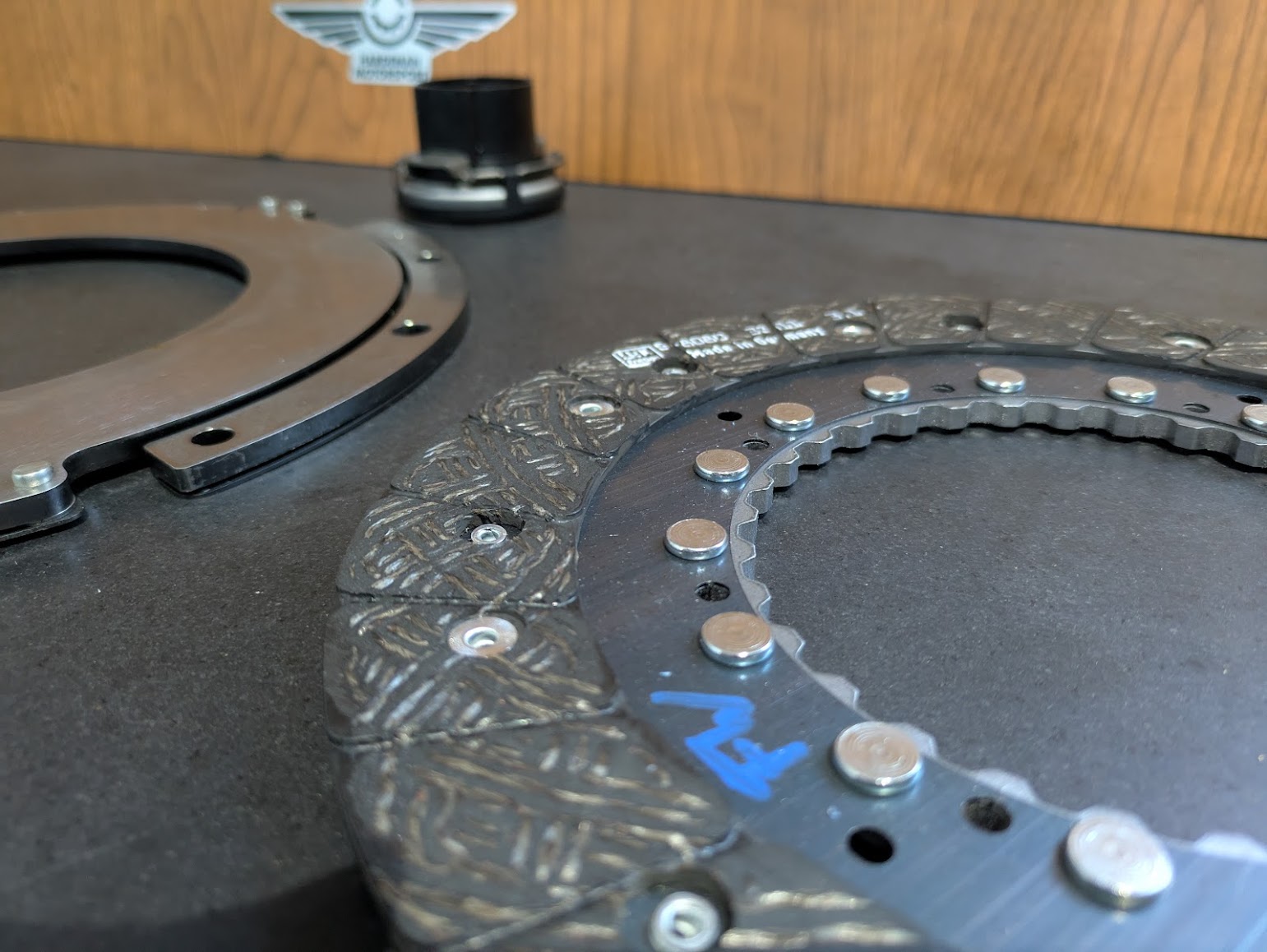

2 *organic friction discs 240mm
Bolts for pressure plate
Thrust bearing

See additional information for matching models



Replaces part numbers:

21207567623 21208631999 21207526516 21517564027



BMW :

1 (E87)
123 d (150 kW ; 03/2007 - 06/2011)

1 (E81)
123 d (150 kW ; 03/2007 - 12/2011)

1 Coupe (E82)
135 i (225 kW ; 10/2007 - 10/2013)
M (250 kW ; 03/2011 - 06/2012)
123 d (150 kW ; 10/2007 - 10/2013)

1 Convertible (E88)
135 i (225 kW ; 03/2008 - 10/2013)
135 i (240 kW ; 03/2008 - 12/2013)
123 d (150 kW ; 09/2008 - 12/2013)

1 (F20)
M 135 i (235 kW ; 07/2012 - 02/2015)
M 135 i (240 kW ; 03/2015 - 06/2016)
M 140 i (250 kW ; 07/2016 - 06/2019)
120 d (120 kW ; 07/2011 - 06/2019)
120 d (135 kW ; 07/2011 - 02/2015)
120 d (140 kW ; 03/2015 - 06/2019)
120 d (147 kW ; 07/2011 - 02/2015)
125 d (155 kW ; 03/2012 - 06/2019)
125 d (160 kW ; 03/2012 - 02/2015)

1 (F21)
M 135 i (235 kW ; 12/2011 - )
M 135 i (240 kW ; 03/2015 - )
M 140 i (250 kW ; 10/2015 - )
120 d (120 kW ; 07/2012 - )
120 d (135 kW ; 07/2012 - )
120 d (140 kW ; 03/2015 - )
120 d (147 kW ; 01/2012 - )
125 d (155 kW ; 12/2011 - )
125 d (160 kW ; 12/2011 - )

2 Convertible (F23)
M 235 i (240 kW ; 11/2014 - )
M 240 i (250 kW ; 09/2015 - )
220 d (120 kW ; 03/2014 - )
220 d (140 kW ; 03/2014 - )

2 Coupe (F22, F87)
M 235 i (240 kW ; 10/2013 - )
M 240 i (250 kW ; 09/2015 - )
220 d (120 kW ; 11/2014 - )
220 d (135 kW ; 10/2012 - 11/2014)
220 d (140 kW ; 03/2014 - )
220 d (147 kW ; 10/2012 - 11/2014)
225 d (160 kW ; 01/2014 - )

3 (E46)
330 d (150 kW ; 03/2003 - 02/2005)
330 xd (150 kW ; 09/2002 - 12/2004)

3 Convertible (E46)
330 Cd (150 kW ; 08/2005 - 12/2007)

3 Coupe (E46)
330 Cd (150 kW ; 03/2003 - 07/2006)

3 Touring (E46)
330 d (150 kW ; 03/2003 - 02/2005)
330 xd (150 kW ; 08/2002 - 05/2005)

3 (E90)
335 i (225 kW ; 09/2006 - 12/2011)
335 xi (225 kW ; 03/2007 - 08/2008)
335 i xDrive (225 kW ; 09/2008 - 10/2011)
320 d (120 kW ; 12/2004 - 10/2011)
320 d xDrive (120 kW ; 09/2008 - 10/2011)
320 d (135 kW ; 03/2010 - 10/2011)
320 d xDrive (135 kW ; 03/2010 - 10/2011)
325 d (145 kW ; 09/2006 - 02/2010)
325 d (150 kW ; 03/2010 - 10/2011)
330 d (170 kW ; 09/2005 - 09/2008)
330 xd (170 kW ; 09/2005 - 08/2008)
330 d (180 kW ; 09/2008 - 10/2011)
330 d xDrive (180 kW ; 09/2008 - 10/2011)

3 Touring (E91)
335 i (225 kW ; 09/2006 - 06/2012)
335 xi (225 kW ; 03/2007 - 08/2008)
335 i xDrive (225 kW ; 09/2008 - 06/2012)
320 d (120 kW ; 06/2005 - 06/2012)
320 d xDrive (120 kW ; 07/2009 - 06/2012)
320 d (135 kW ; 03/2010 - 05/2012)
320 d xDrive (135 kW ; 03/2010 - 06/2012)
325 d (145 kW ; 09/2006 - 06/2012)
325 d (150 kW ; 02/2010 - 06/2012)
330 d (170 kW ; 12/2004 - 08/2008)
330 xd (170 kW ; 09/2005 - 06/2012)
330 d (180 kW ; 02/2008 - 05/2012)
330 d xDrive (180 kW ; 01/2009 - 06/2012)

3 Coupe (E92)
335 i (225 kW ; 06/2006 - 06/2013)
335 xi (225 kW ; 03/2007 - 02/2010)
335 i xDrive (225 kW ; 11/2008 - 12/2013)
320 d (120 kW ; 03/2007 - 06/2013)
320 d xDrive (130 kW ; 09/2008 - 02/2010)
320 d (135 kW ; 03/2010 - 06/2013)
320 d xDrive (135 kW ; 03/2010 - 06/2013)
325 d (145 kW ; 02/2007 - 02/2010)
325 d (150 kW ; 09/2009 - 12/2013)
325 d (155 kW ; 02/2007 - 02/2010)
330 d (170 kW ; 03/2006 - 08/2008)
330 xd (170 kW ; 03/2006 - 08/2008)
330 d (180 kW ; 01/2009 - 12/2013)
330 xd (180 kW ; 03/2008 - 02/2010)
330 d xDrive (180 kW ; 02/2010 - 06/2013)

3 Convertible (E93)
335 i (225 kW ; 12/2006 - 10/2013)
335 i (240 kW ; 05/2006 - 10/2013)
320 d (120 kW ; 01/2008 - 12/2013)
320 d (130 kW ; 03/2008 - 02/2010)
320 d (135 kW ; 03/2010 - 10/2013)
325 d (145 kW ; 03/2007 - 12/2010)
325 d (150 kW ; 09/2009 - 09/2013)
325 d (155 kW ; 03/2007 - 12/2010)
330 d (170 kW ; 03/2007 - 12/2013)
330 d (180 kW ; 01/2009 - 12/2013)

3 (F30, F80)
320 i xDrive (135 kW ; 07/2012 - 10/2018)
320 i xDrive (135 kW ; 07/2015 - 10/2018)
328 i xDrive (180 kW ; 07/2012 - 08/2016)
335 i (225 kW ; 11/2011 - 07/2015)
335 i xDrive (225 kW ; 07/2012 - 07/2015)
335 i (240 kW ; 11/2011 - 06/2013)
335 i xDrive (240 kW ; 07/2012 - 06/2013)
335 i (250 kW ; 07/2013 - 07/2015)
335 i xDrive (250 kW ; 07/2013 - 07/2015)
340 i (240 kW ; 07/2015 - 10/2018)
340 i xDrive (240 kW ; 07/2015 - 10/2018)
340 i (265 kW ; 07/2015 - 10/2018)
340 i xDrive (265 kW ; 07/2015 - 10/2018)
320 d (120 kW ; 11/2011 - 10/2018)
320 d (135 kW ; 11/2011 - 03/2016)
320 d (140 kW ; 07/2015 - 10/2018)
320 d (147 kW ; 11/2011 - 03/2016)
325 d (155 kW ; 03/2013 - 02/2016)
325 d (160 kW ; 03/2013 - 02/2016)
325 d (165 kW ; 03/2016 - 02/2018)

3 Touring (F31)
320 i xDrive (120 kW ; 03/2013 - 06/2015)
320 i xDrive (135 kW ; 03/2013 - 06/2015)
320 i xDrive (135 kW ; 07/2015 - 06/2019)
328 i xDrive (180 kW ; 03/2013 - 06/2016)
335 i (225 kW ; 03/2013 - 06/2015)
335 i xDrive (225 kW ; 03/2013 - 06/2015)
335 i (240 kW ; 03/2013 - 06/2013)
335 i xDrive (240 kW ; 03/2013 - 06/2013)
335 i (250 kW ; 07/2013 - 06/2015)
335 i xDrive (250 kW ; 07/2013 - 06/2015)
340 i (265 kW ; 07/2015 - 06/2019)
340 i xDrive (265 kW ; 07/2015 - 06/2019)
320 d (120 kW ; 07/2012 - 06/2019)
320 d (135 kW ; 07/2012 - 02/2016)
320 d (140 kW ; 07/2015 - 06/2019)
320 d (147 kW ; 07/2012 - 02/2016)
325 d (155 kW ; 03/2013 - 02/2016)
325 d (160 kW ; 03/2013 - 02/2016)
325 d (165 kW ; 03/2016 - 02/2018)

3 Gran Turismo (F34)
320 i xDrive (120 kW ; 07/2013 - 06/2016)
320 i xDrive (135 kW ; 11/2012 - 06/2016)
320 i xDrive (135 kW ; 07/2016 - )
335 i (225 kW ; 03/2013 - 06/2016)
335 i (240 kW ; 03/2013 - 03/2014)
335 i (250 kW ; 04/2014 - 06/2016)
320 d (120 kW ; 03/2013 - )
320 d (135 kW ; 03/2013 - 06/2015)
320 d (140 kW ; 07/2015 - )
320 d (147 kW ; 03/2013 - 06/2015)
325 d (155 kW ; 07/2013 - 06/2016)
325 d (160 kW ; 07/2013 - 06/2016)

4 Convertible (F33, F83)
435 i (225 kW ; 11/2013 - 02/2016)
435 i xDrive (225 kW ; 07/2014 - 02/2016)
435 i (250 kW ; 11/2013 - 02/2016)
435 i xDrive (250 kW ; 07/2014 - 02/2016)
420 d (120 kW ; 11/2013 - )
420 d (135 kW ; 10/2013 - 06/2015)
420 d (140 kW ; 07/2015 - )
420 d (147 kW ; 10/2013 - 06/2015)
425 d (155 kW ; 07/2014 - 02/2016)
425 d (160 kW ; 07/2014 - 02/2016)
425 d (165 kW ; 03/2016 - 02/2018)

4 Coupe (F32, F82)
420 i xDrive (120 kW ; 11/2013 - 02/2016)
420 i xDrive (135 kW ; 11/2013 - 02/2016)
420 i xDrive (120 kW ; 03/2016 - )
420 i xDrive (135 kW ; 03/2016 - )
428 i xDrive (180 kW ; 07/2013 - 02/2016)
435 i (225 kW ; 07/2013 - 02/2016)
435 i xDrive (225 kW ; 07/2013 - 02/2016)
435 i (250 kW ; 07/2013 - 02/2016)
435 i xDrive (250 kW ; 07/2013 - 02/2016)
440 i (240 kW ; 03/2016 - )
440 i xDrive (240 kW ; 03/2016 - )
440 i (265 kW ; 03/2016 - )
440 i xDrive (265 kW ; 03/2016 - )
420 d (120 kW ; 07/2013 - )
420 d (135 kW ; 07/2013 - 02/2015)
420 d (140 kW ; 03/2015 - )
420 d (147 kW ; 07/2013 - 03/2015)
425 d (155 kW ; 03/2014 - 02/2016)
425 d (160 kW ; 03/2014 - 02/2016)
425 d (165 kW ; 03/2016 - 10/2017)

4 Gran Coupe (F36)
420 i xDrive (120 kW ; 07/2014 - 02/2016)
420 i xDrive (135 kW ; 07/2014 - 02/2016)
420 i (135 kW ; 03/2016 - )
420 i xDrive (120 kW ; 03/2016 - )
420 i xDrive (135 kW ; 03/2016 - )
428 i xDrive (180 kW ; 03/2014 - 02/2016)
435 i (225 kW ; 03/2014 - 02/2016)
435 i xDrive (225 kW ; 07/2014 - 02/2016)
435 i (250 kW ; 03/2014 - 02/2016)
435 i xDrive (250 kW ; 07/2014 - 02/2016)
420 d (120 kW ; 03/2014 - )
420 d (135 kW ; 03/2014 - 02/2015)
420 d (140 kW ; 03/2015 - )
420 d (147 kW ; 03/2014 - 02/2015)
425 d (155 kW ; 03/2016 - 02/2018)
425 d (165 kW ; 03/2016 - 02/2018)

5 (E60)
540 i (225 kW ; 03/2007 - 12/2009)
545 i (245 kW ; 09/2003 - 08/2005)
550 i (270 kW ; 09/2005 - 12/2009)
525 d (120 kW ; 12/2004 - 03/2010)
525 d (130 kW ; 06/2004 - 03/2010)
525 d (145 kW ; 01/2007 - 03/2010)
525 xd (145 kW ; 11/2006 - 08/2007)
525 d xDrive (145 kW ; 09/2007 - 12/2009)
530 d (160 kW ; 09/2002 - 09/2005)
530 d (170 kW ; 09/2005 - 03/2007)
530 xd (170 kW ; 02/2005 - 02/2007)
530 d (173 kW ; 02/2007 - 12/2009)
530 xd (173 kW ; 03/2007 - 08/2007)
530 d xDrive (173 kW ; 09/2007 - 12/2009)

5 Touring (E61)
545 i (245 kW ; 06/2004 - 12/2010)
550 i (270 kW ; 07/2005 - 12/2010)
525 d (120 kW ; 03/2004 - 03/2007)
525 d (130 kW ; 03/2004 - 03/2007)
525 d (145 kW ; 03/2007 - 05/2010)
525 xd (145 kW ; 09/2007 - 09/2008)
525 d xDrive (145 kW ; 09/2008 - 05/2010)
530 d (160 kW ; 03/2004 - 09/2005)
530 d (170 kW ; 02/2005 - 02/2007)
530 xd (170 kW ; 02/2005 - 02/2007)
530 d (173 kW ; 02/2007 - 05/2010)
530 xd (173 kW ; 03/2007 - 08/2007)
530 d xDrive (173 kW ; 09/2007 - 05/2010)

5 (F10)
535 i (225 kW ; 01/2010 - 10/2016)
535 i (240 kW ; 07/2013 - 10/2016)
518 d (100 kW ; 07/2013 - 06/2014)
518 d (105 kW ; 07/2013 - 06/2014)
520 d (120 kW ; 06/2010 - 10/2016)
520 d (135 kW ; 06/2010 - 06/2014)
525 d (155 kW ; 09/2011 - 10/2016)
525 d (160 kW ; 09/2011 - 10/2016)
525 d (150 kW ; 03/2010 - 08/2011)
530 d (180 kW ; 01/2010 - 08/2011)
530 d (190 kW ; 09/2011 - 10/2016)
530 d (210 kW ; 09/2010 - 10/2016)

5 Touring (F11)
535 i (225 kW ; 06/2010 - 02/2017)
535 i (240 kW ; 07/2013 - 02/2017)
518 d (100 kW ; 07/2013 - 02/2017)
518 d (105 kW ; 07/2013 - 06/2014)
520 d (120 kW ; 06/2010 - 02/2017)
520 d (135 kW ; 06/2010 - 06/2014)
525 d (155 kW ; 09/2011 - 02/2017)
525 d (160 kW ; 09/2011 - 02/2017)
525 d (150 kW ; 09/2010 - 08/2011)
530 d (180 kW ; 06/2010 - 08/2011)
530 d (190 kW ; 09/2011 - 02/2017)
530 d (210 kW ; 09/2011 - 02/2017)

5 (G30, F90)
520 d (120 kW ; 09/2016 - 10/2019)
520 d (140 kW ; 09/2016 - 10/2019)

5 Touring (G31)
520 d (120 kW ; 03/2017 - 10/2019)
520 d (140 kW ; 03/2017 - 10/2019)

6 (E63)
645 Ci (245 kW ; 09/2003 - 08/2005)
650 i (270 kW ; 09/2005 - 08/2010)

6 Convertible (E64)
645 Ci (245 kW ; 04/2004 - 08/2005)
650 i (270 kW ; 09/2005 - 08/2010)

6 Convertible (F12)
650 i (300 kW ; 12/2010 - 06/2012)
650 i (330 kW ; 07/2012 - 06/2018)

6 Coupe (F13)
650 i (300 kW ; 07/2011 - 06/2012)
650 i (330 kW ; 07/2012 - 10/2017)

X1 (E84)
xDrive 18 d (100 kW ; 03/2009 - 06/2015)
xDrive 18 d (105 kW ; 10/2009 - 06/2015)
sDrive 20 d (120 kW ; 03/2010 - 06/2015)
sDrive 20 d (130 kW ; 10/2009 - 06/2015)
sDrive 20 d (135 kW ; 07/2012 - 06/2015)
xDrive 20 d (135 kW ; 07/2012 - 06/2015)
xDrive 23 d (150 kW ; 10/2009 - 06/2015)

X3 (E83)
3.0 d (150 kW ; 01/2004 - 08/2005)
xDrive 30 d (155 kW ; 09/2008 - 08/2010)
3.0 d (160 kW ; 09/2005 - 08/2008)
xDrive 30 d (160 kW ; 09/2008 - 08/2010)

X3 (F25)
xDrive 20 i (135 kW ; 10/2011 - 08/2017)
sDrive 18 d (100 kW ; 10/2012 - 03/2014)
sDrive 18 d (105 kW ; 10/2012 - 03/2014)
sDrive 18 d (110 kW ; 04/2014 - 08/2017)
xDrive 20 d (120 kW ; 09/2010 - 03/2014)
xDrive 20 d (135 kW ; 09/2010 - 03/2014)

X5 (E53)
3.0 d (160 kW ; 10/2003 - 09/2006)

Z4 Roadster (E89)
sDrive 35 i (225 kW ; 02/2009 - 08/2016)



1' Series
-E82
+135i N54
-E88
+135i N54

3' Series
-E90
+335i N54
+335xi N54
-E90 Facelift
+335i N54
+335xi N54
-E91
+335i N54
+335xi N54
-E91 Facelift
+335i N54
+335xi N54
-E92
+335i N54
+335xi N54
-E92 Facelift
+335i N55
+335xi N55
-E93
+335i N54
-E93 Facelift
+335i N55

5' Series
-E60
+540i N62N
+545i N62
+550i N62N
-E60 Facelift
+535i N54
+535xi N54
+540i N62N
+550i N62N
-E61
+545i N62
+550i N62N
-E61 Facelift
+535xi N54
+550i N62N

6' Series
-E63
+645Ci N62
+650i N62N
-E63 Facelift
+650i N62N
-E64
+645Ci N62
+650i N62N
-E64 Facelift
+650i N62N

X5 Series
-E53
+X5 3.0d M57N

Z Series
-E89
+Z4 35i N54

Double-plate cushioned organic clutch for original flywheel N54, N55, N62 B58 does not have any reviews yet. Share your experiences and post a review.
Post review
Double-plate cushioned organic clutch for original flywheel N54, N55, N62 B58
Post review

Meest recente reviews

Alternate products for Double-plate cushioned organic clutch for original flywheel N54, N55, N62 B58
