Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm M40, M42, M44, M50, M52, M54, S50, S52

Name: Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm M40, M42, M44, M50, M52, M54, S50, S52
Brand: Xtreme Clutch
Price: 2015.87 EUR
Availability: InStock

€2.015,87

(Price excluding VAT): €1.666,01

Stock:

0 Items

Item No.:

KBM20530-2B

SKU:

Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm M40, M42, M44, M50, M52, M54, S50, S52

More Xtreme Clutch | More Flywheel and clutch kits

Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

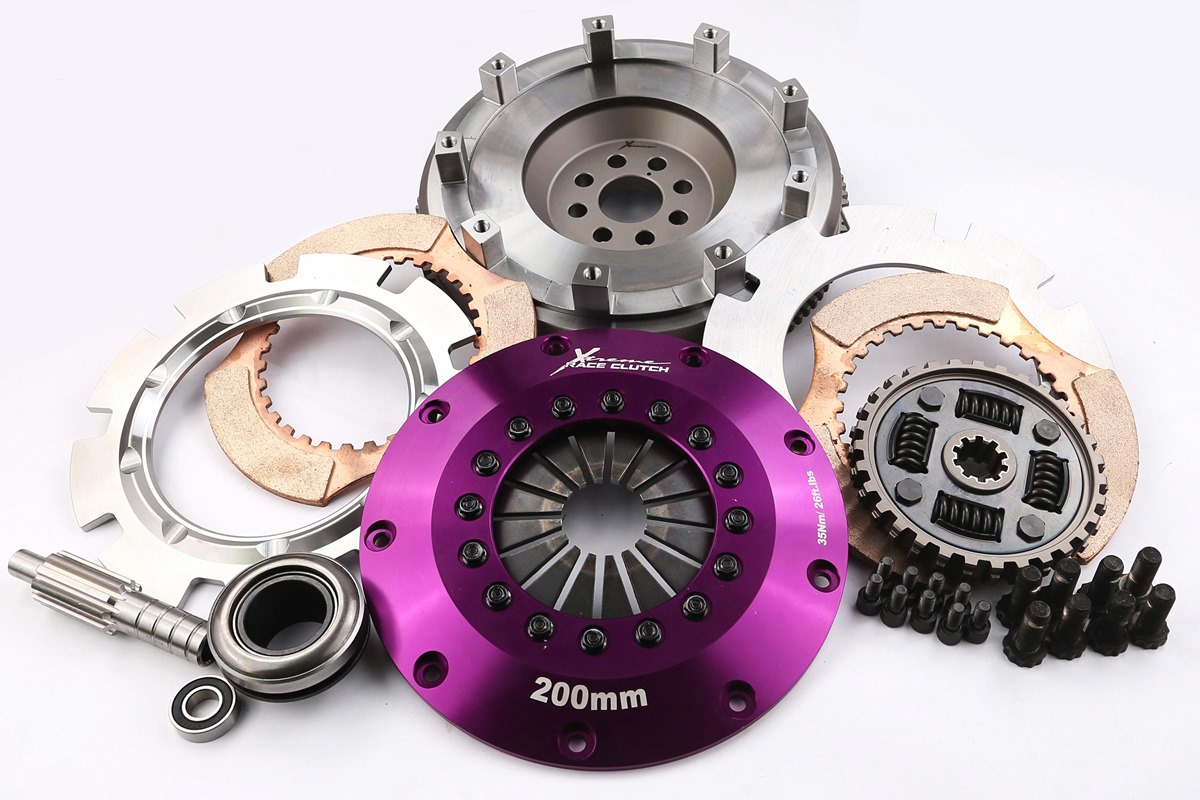

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

Torque capacity 1200Nm
Kit contains everything you need for a successful installation + accessories
High torque sprung driven discs (common hub)
Push type billet alloy cover
4140 Chromoly pressure & intermediate plates
Hardened steel wear posts
Low inertia
Serviceable components
SFI certified design

Clamping Force	1000kg
Torque Rating	1200Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	218kg
Release Travel Required	6mm
Assembly Mass (without flywheel)	7.4kg
Disc Set Static Mass	2.15kg
Friction Thickness New	7mm (0.275")
Friction Thickness Worn	6.48mm (0.255")

Xtreme Motorsport

Clutch Disc Diameter (mm): 200

Clutch Disc Spline Count: 10

Clutch Disc Spline Diameter (mm): 29

Torque (Nm): 1200

Flywheel Step: +2.2mm

Design: Twin Plate

Stage: Multiplate - track use only

Tech Bulletins: TSB-200-2-X-1 TSB-269 TSB-PEDAL STOP

Clamp Load: 1000kg

Recommended for: Motorsport

Ring Gear Tooth count:

Additional information:

Fits:

- BMW/3-Series/318 is E30/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991) ,

- BMW/3-Series/318 is E36/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995) ,

- BMW/3-Series/318 is E36/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995) ,

- BMW/3-Series/318 is E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) ,

- BMW/3-Series/318 is E36/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998) ,

- BMW/3-Series/318 ti E36/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995) ,

- BMW/3-Series/318 ti E36/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999) ,

- BMW/3-Series/320 Ci E46/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001) ,

- BMW/3-Series/320 Ci E46/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007) ,

- BMW/3-Series/320 i E46/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000) ,

- BMW/3-Series/320 i E46/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000) ,

- BMW/3-Series/323 Ci E46/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000) ,

- BMW/3-Series/323 i E46/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000) ,

- BMW/3-Series/323 ti E36/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000) ,

- BMW/3-Series/325 i E36/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) ,

- BMW/3-Series/325 i E36/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995) ,

- BMW/3-Series/325 i E36/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995) ,

- BMW/3-Series/328 Ci E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) ,

- BMW/3-Series/328 i E36/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999) ,

- BMW/3-Series/328 i E36/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998) ,

- BMW/3-Series/328 i E46/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) ,

- BMW/3-Series/328 i E46/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000) ,

- BMW/3-Series/M3 3.0 E36/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995) ,

- BMW/3-Series/M3 3.0 E36/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995) ,

- BMW/3-Series/M3 3.0 E36/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995) ,

- BMW/3-Series/M3 3.2 E36/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998) ,

- BMW/3-Series/M3 3.2 E36/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999) ,

- BMW/5-Series/518 i E34/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994) ,

- BMW/5-Series/518 i E34/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994) ,

- BMW/5-Series/518 i E34/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995) ,

- BMW/5-Series/518 i E34/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996) ,

- BMW/Z3/1.9 i E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) ,

- BMW/Z3/M E36/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) ,

- BMW/Z3/M 3.2 E36/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000) ,
