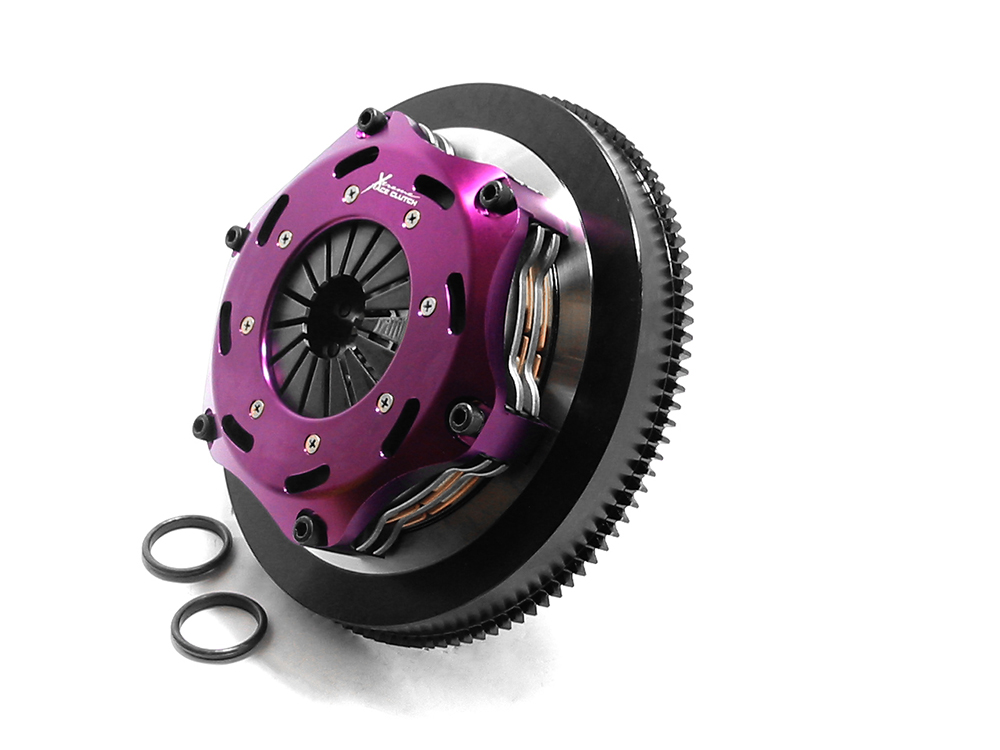

Performance - 184 mm stijve keramische koppelingsset met dubbele plaat incl. vliegwiel 1220 Nm M40, M42, M44, M50, M52, M54, S50, S52
Neem contact op voor montage, levertijd of andere modellen van ACS.
Xtreme Motorsport
Clutch Disc Diameter (mm): 184
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 29
Torque (Nm): 1220
Flywheel Step: +2.5mm
Design: Twin Plate
Stage: Multiplate - track use only
Tech Bulletins: 185MM TWIN PLATE BULLETINCLUTCH FORK AND PIVOT BALL WEARTSB-185-2-XTSB-269
Clamp Load: 900Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
Fits:
- BMW/3-Series/318 is E30/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991) ,
- BMW/3-Series/318 is E36/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995) ,
- BMW/3-Series/318 is E36/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995) ,
- BMW/3-Series/318 is E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) ,
- BMW/3-Series/318 is E36/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998) ,
- BMW/3-Series/318 ti E36/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995) ,
- BMW/3-Series/318 ti E36/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999) ,
- BMW/3-Series/320 Ci E46/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001) ,
- BMW/3-Series/320 Ci E46/2000-2006/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2006) ,
- BMW/3-Series/320 Ci E46/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007) ,
- BMW/3-Series/320 Ci E46/2000-2006/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2006) ,
- BMW/3-Series/320 i E46/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000) ,
- BMW/3-Series/320 i E46/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000) ,
- BMW/3-Series/320 i E46/2000-2005/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2005) ,
- BMW/3-Series/320 i E46/2000-2005/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2005) ,
- BMW/3-Series/323 Ci E46/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000) ,
- BMW/3-Series/323 Ci E46/2000-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (2000-2000) ,
- BMW/3-Series/323 Ci E46/2000-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (2000-2000) ,
- BMW/3-Series/323 Ci E46/1999-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1999-2000) ,
- BMW/3-Series/323 i E46/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000) ,
- BMW/3-Series/323 i E46/1998-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1998-2000) ,
- BMW/3-Series/323 ti E36/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000) ,
- BMW/3-Series/325 Ci E46/2000-2006/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2006) ,
- BMW/3-Series/325 i E36/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) ,
- BMW/3-Series/325 i E36/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995) ,
- BMW/3-Series/325 i E36/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995) ,
- BMW/3-Series/325 i E46/2000-2005/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2005) ,
- BMW/3-Series/325 ti E46/2001-2004/2494cc | 141KW | 192HP | M54 B25 (256S5) (2001-2004) ,
- BMW/3-Series/328 i E36/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999) ,
- BMW/3-Series/328 i E36/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998) ,
- BMW/3-Series/330 Ci E46/2000-2006/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2006) 5 Speed, Production date: until 02/2003
- BMW/3-Series/330 i E46/2000-2005/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2005) 5 Speed, Production date: until 02/2003
- BMW/3-Series/M3 3.0 E36/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995) ,
- BMW/3-Series/M3 3.0 E36/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995) ,
- BMW/3-Series/M3 3.0 E36/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995) ,
- BMW/3-Series/M3 3.2 E36/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998) ,
- BMW/3-Series/M3 3.2 E36/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999) ,
- BMW/5-Series/518 i E34/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994) ,
- BMW/5-Series/518 i E34/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994) ,
- BMW/5-Series/518 i E34/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995) ,
- BMW/5-Series/518 i E34/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996) ,
- BMW/5-Series/520 i E39/1996-2003/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1996-2003) ,
- BMW/5-Series/520 i E39/1997-2001/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) ,
- BMW/5-Series/520 i E39/1997-2001/1990cc | 100KW | 136HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) ,
- BMW/5-Series/520 i E39/2000-2003/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2003) ,
- BMW/5-Series/525 e E28/1983-1987/2693cc | 92KW | 125HP | M20 B27 (276EA) (1983-1987) ,
- BMW/5-Series/525 e E28/1985-1987/2693cc | 95KW | 129HP | M20 B27 (276EB), M20 B27 (276KB) (1985-1987) ,
- BMW/5-Series/525 e E28/1981-1987/2693cc | 90KW | 122HP | M20 B27 (276KA), M20 B27 (276KB) (1981-1987) ,
- BMW/5-Series/525 i E34/1988-1990/2494cc | 125KW | 170HP | M20 B25 (256K1) (1988-1990) ,
- BMW/5-Series/525 i E34/1991-1996/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1996) ,
- BMW/5-Series/525 i E39/2000-2003/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2003) ,
- BMW/5-Series/525 i 24V E34/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) ,
- BMW/Z3/1.9 i E36/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) ,
- BMW/Z3/M E36/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) ,
- BMW/Z3/M 3.2 E36/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000) ,
