Description
"Our part has to work and have a technical advantage in addition to its appearance, otherwise we won't build it." - Speed Engineering GmbH
All parts were not only developed in Germany, but also manufactured and are therefore 100% Made in Germany!

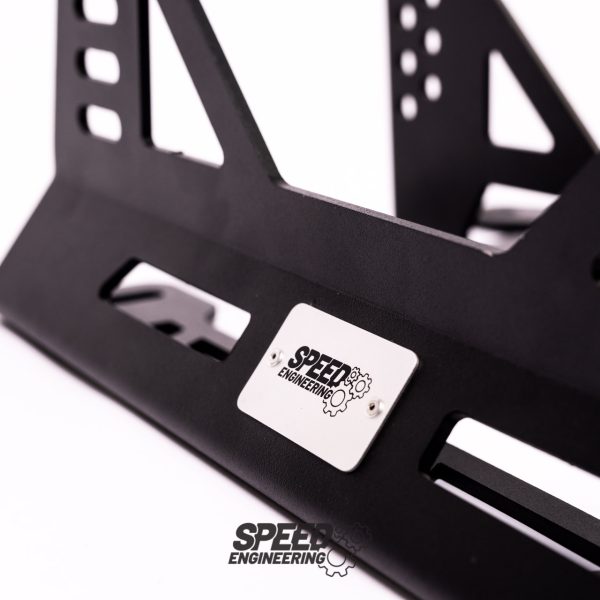

Probably the deepest seat attachment for the A4 B5 platform. On average, about 5cm deeper than well-known seat consoles in the competition!
A seat attachment is primarily a safety-relevant component and we designed it as such. Breakouts and the shape of the components are not chosen arbitrarily, but are based on the results of calculations and simulations of the stress curves in the loaded state.
Each of our components was subjected to an FEM simulation in order to ensure safety first and therefore to optimize the weight.
In addition, with our solution we achieve the lowest possible sitting position in front of the steering wheel and at the same time a central one.
The awkward locking of difficult-to-access nuts under the console , we avoid this through internal threads in the component. Less fastening material, less effort, smooth installation, with maximum utilization of the given installation space, which we recorded and measured using a 3D scanner.

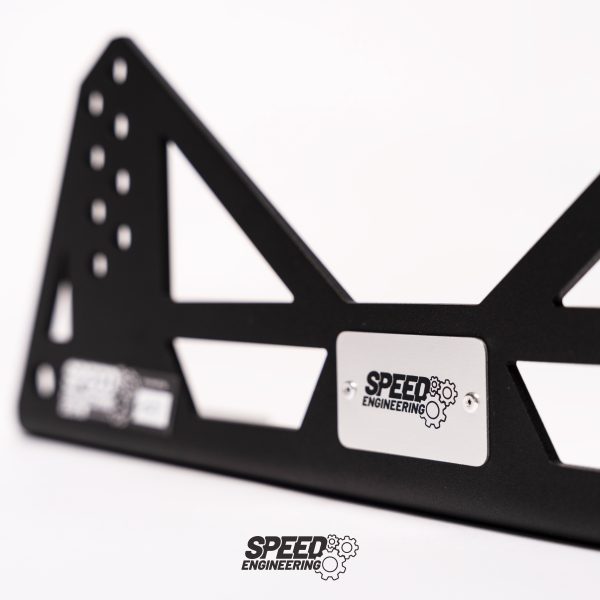

Our L-adapters were designed in 4 mm steel after numerous tests and have Well thought-out placement of the holes in order to adjust the lowest possible position with a wide variety of seat shell shapes. The double row of holes allowed us to refine the height scaling.
With this design we were able to reduce the lever arms between the attachment points. As a result, lower loads occur due to lower torques.
Interested? Find out more about seat attachments!

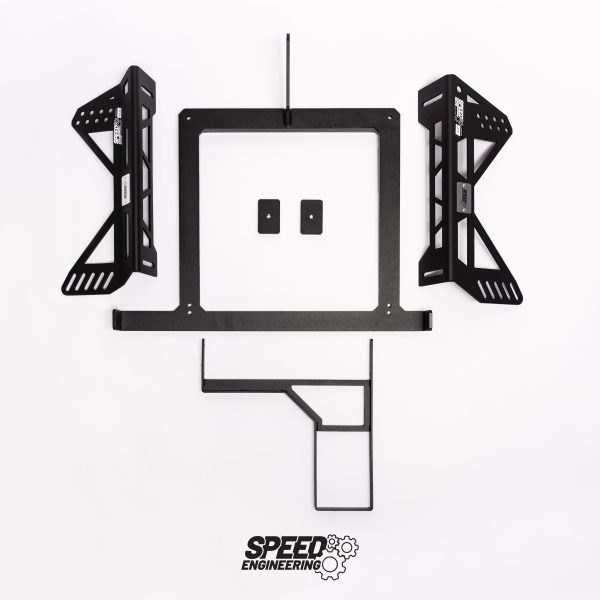

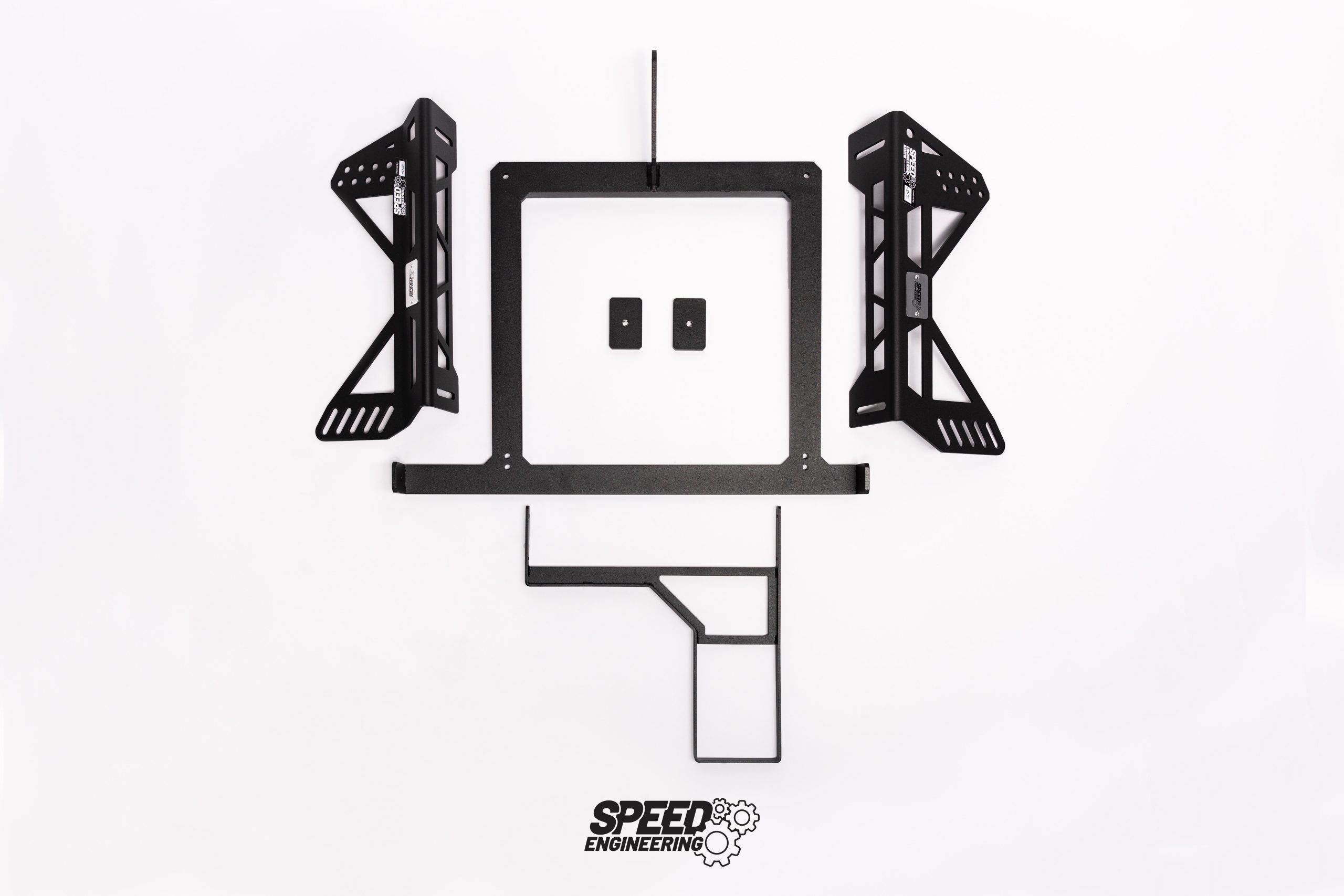

Included in delivery

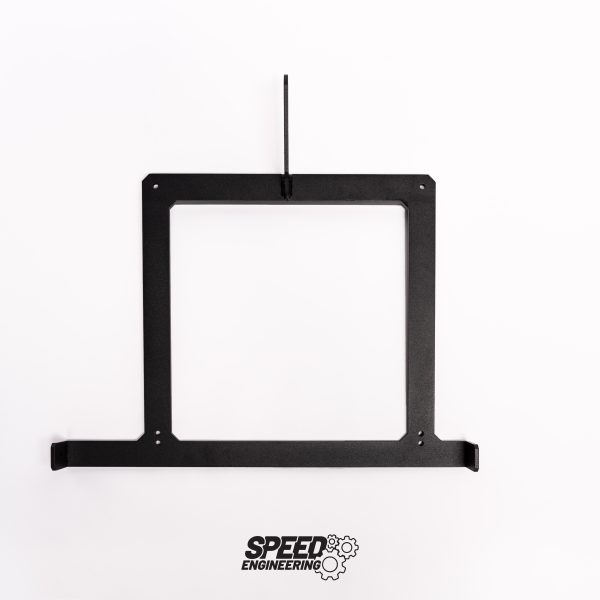

1x seat console (driver or front passenger)
1x L-adapter left
1x L- Adapter right
1x package of fastening material
Operating instructions on the product page
Material report on request
A suitable running rail can be purchased optionally (Art .: 13201).
Our sets are designed so that Recaro running rails can also be mounted.
This item is suitable for:
Audi A4 B5 platform
These parts are motorsport products that are not easily approved according to the StVO. An individual acceptance according to ?21 by the TuV is necessary for this. We explicitly point out that none of our products offered for sale are original vehicle parts from the vehicle manufacturers BMW AG, M GmbH, MINI, VAG or other vehicle manufacturers. Naming the vehicle brands and models only serves to find the product and assign it to the appropriate vehicle type.
