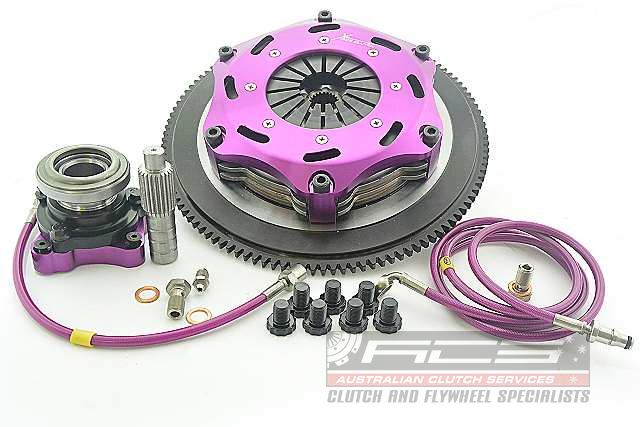

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

??	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm	5mm
Assembly Mass (without flywheel)	4.45kg	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")	5.97mm (0.235")

Xtreme Motorsport

Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 1220

Flywheel Step: +2.5mm

Design: Twin Plate

Stage: Multiplate - track use only

Tech Bulletins:

Clamp Load:

Recommended for: Motorsport

Ring Gear Tooth count:

Additional information:

Fits:

- MITSUBISHI/LANCER/2.0 i Ralliart 4WD (CY4A)/2008.10-/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 -) ,

- MITSUBISHI/LANCER/2.0 Ralliart 4WD (CX4A)/2008.10-/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 -) ,

- MITSUBISHI/LANCER/EVO X - FQ400 (CZ4A)/2009.05-2010.12/4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12) ,

- MITSUBISHI/LANCER/EVO X - FQ440 (CZ4A)/2014.05-2014.06/4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06) ,

- MITSUBISHI/LANCER/EVO X (CZ4A)/2008.06-2015.03/4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03) ,

- MITSUBISHI/LANCER/EVO X (CZ4A)/2008.06-2015.12/4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12) ,

- MITSUBISHI/LANCER/EVO X (CZ4A)/2014.09-2015.12/4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12) ,
