Clutch Kit - Xtreme Performance Heavy Duty Organic Incl Flywheel & CSC 600Nm Conversion kit Dual-mass to solid flywheel A3 (8P1) 2.0 TDI 16V quattro

1.557,88
(Price excluding VAT): 1.287,50
Stock:
0 Items
Item No.:
KVW24696-1A

Clutch Kit - Xtreme Performance Heavy Duty Organic Incl Flywheel & CSC 600Nm Conversion kit Dual-mass to solid flywheel A3 (8P1) 2.0 TDI 16V quattro

Contact us for installation, availability or other possible clutch models.
Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:
  • Torque capacity 600Nm
  • https://3cerp.eu/api/file/whatsinthebox_XtremePerformance.jpg
  • Clamp load Increased over standard
  • Organic Friction Discs
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

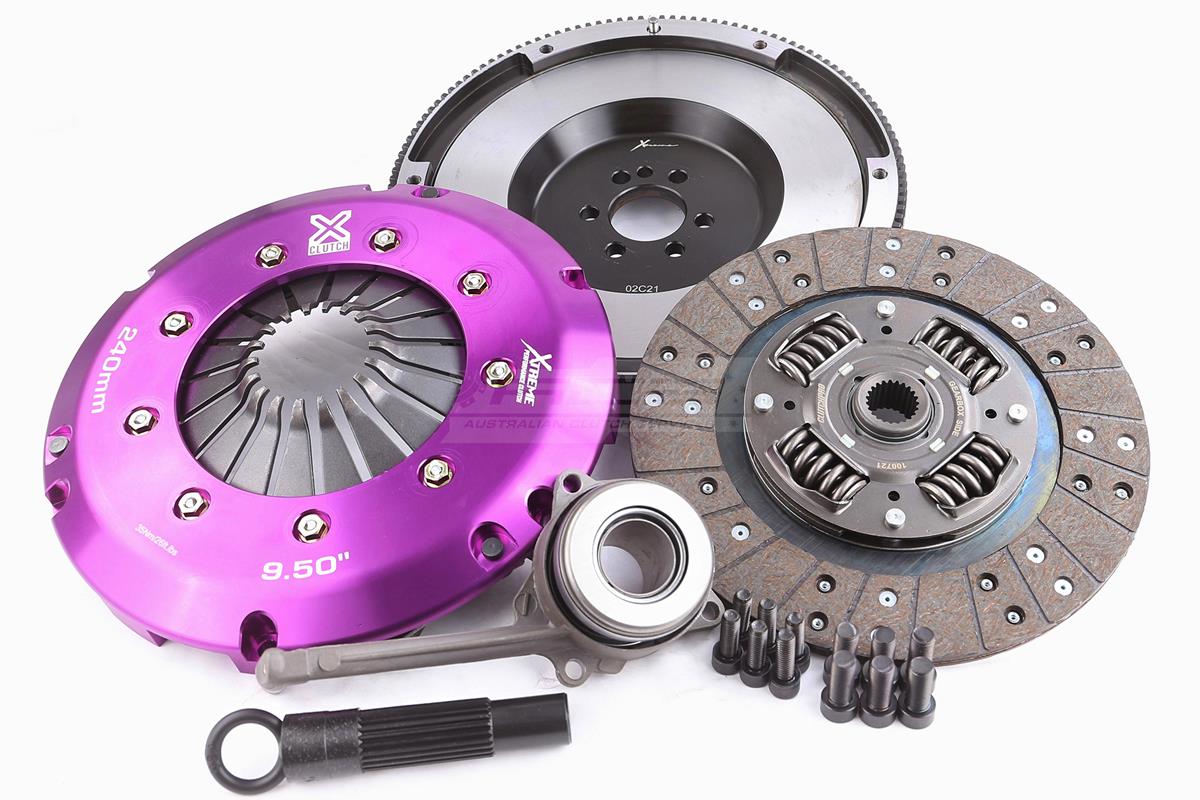

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Xtreme Performance

Clutch Disc Diameter (mm): 240

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 24.7

Torque (Nm): 600

Flywheel Step: -9.48mm

Design: Single Plate

Stage: Stage 1

Tech Bulletins: TSB-SMF02TSB-167TSB-226

Clamp Load:

Recommended for: Street Performance & Towing - Stage 1

Ring Gear Tooth count:

Additional information: Conversion from dual-mass flywheel to single-mass flywheel

Fits:

- AUDI/A3 (8P1)/2.0 TDI 16V quattro/2004.08-2012.08/BKD, CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2004.08 - 2012.08) ,

- AUDI/A3 (8P1)/2.0 TDI quattro/2003.05-2008.06/AZV 1968 Diesel 100 kW 136 BHP (2003.05 - 2008.06) ,

- AUDI/A3 (8P1)/2.0 TDI quattro/2006.01-2008.06/BMM 1968 Diesel 103 kW 140 BHP (2006.01 - 2008.06) ,

- AUDI/A3 (8P1)/2.0 TDI quattro/2006.03-2012.08/BMN, CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2006.03 - 2012.08) ,

- AUDI/A3 (8P1)/2.0 TFSI/2004.09-2009/AXX, BWA, CAWB, CCZA 1984 Petrol 147 kW 200 BHP (2004.09 - 2009) ,

- AUDI/A3 (8P1)/2.0 TFSI quattro/2004.09-2006/AXX, BWA, CCZA, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2004.09 - 2006) ,

- AUDI/A3 (8P1)/S3 quattro/2006.11-2012.08/BHZ, CDLA 1984 Petrol 195 kW 265 BHP (2006.11 - 2012.08) ,

- AUDI/A3 (8P1)/S3 quattro/2007.02-2012.08/BZC, CDLC 1984 Petrol 188 kW 256 BHP (2007.02 - 2012.08) ,

- AUDI/A3 Sportback (8PA)/2.0 TDI 16V quattro/2005.11-2013.03/BKD, CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2005.11 - 2013.03) ,

- AUDI/A3 Sportback (8PA)/2.0 TDI quattro/2006.01-2008.06/BMM 1968 Diesel 103 kW 140 BHP (2006.01 - 2008.06) ,

- AUDI/A3 Sportback (8PA)/2.0 TDI quattro/2006.03-2013.03/BMN, CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2006.03 - 2013.03) ,

- AUDI/A3 Sportback (8PA)/2.0 TFSI/2004.09-2009/AXX, BWA, BPY, CAWB, CCZA, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2004.09 - 2009) ,

- AUDI/A3 Sportback (8PA)/2.0 TFSI quattro/2004.09-2006/AXX, BWA, BPY, CCZA, CBFA, CCTA 1984 Petrol 147 kW 200 BHP (2004.09 - 2006) ,

- AUDI/A3 Sportback (8PA)/S3 quattro/2008.06-2013.03/BHZ, CDLA 1984 Petrol 195 kW 265 BHP (2008.06 - 2013.03) ,

- AUDI/A3 Sportback (8PA)/S3 quattro/2008.07-2013.03/CDLC 1984 Petrol 188 kW 256 BHP (2008.07 - 2013.03) ,

- AUDI/TT (8J3)/2.0 TDI quattro/2008.06-2014.06/CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2008.06 - 2014.06) ,

- AUDI/TT (8J3)/2.0 TFSI/2006.08-2010.06/BWA, BPY, CCTA 1984 Petrol 147 kW 200 BHP (2006.08 - 2010.06) ,

- AUDI/TT (8J3)/2.0 TTS quattro/2008.05-2014.06/CDLA, CDMA 1984 Petrol 195 kW 265 BHP (2008.05 - 2014.06) ,

- AUDI/TT (8J3)/2.0 TTS quattro/2008.05-2014.06/CDLB 1984 Petrol 200 kW 272 BHP (2008.05 - 2014.06) ,

- AUDI/TT Roadster (8J9)/2.0 TDI quattro/2008.06-2014.06/CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2008.06 - 2014.06) ,

- AUDI/TT Roadster (8J9)/2.0 TFSI/2007.03-2010.06/BWA, BPY, CCTA 1984 Petrol 147 kW 200 BHP (2007.03 - 2010.06) ,

- AUDI/TT Roadster (8J9)/2.0 TTS quattro/2008.05-2014.06/CDLA, CDMA 1984 Petrol 195 kW 265 BHP (2008.05 - 2014.06) ,

- AUDI/TT Roadster (8J9)/2.0 TTS quattro/2008.05-2014.06/CDLB 1984 Petrol 200 kW 272 BHP (2008.05 - 2014.06) ,

- DODGE/JOURNEY/2.0 CRD/2008.06-2011.12/ECE 1968 Diesel 100 kW 136 BHP (2008.06 - 2011.12) ,

- SEAT/LEON (1P1)/2.0 Cupra R/2009.09-2012.12/CDLA 1984 Petrol 195 kW 265 BHP (2009.09 - 2012.12) ,

- SEAT/LEON (1P1)/2.0 TFSI/2005.05-2009.03/BWA 1984 Petrol 147 kW 200 BHP (2005.05 - 2009.03) ,

- SEAT/LEON (1P1)/2.0 TFSI/2005.09-2006.05/BWA 1984 Petrol 136 kW 185 BHP (2005.09 - 2006.05) ,

- SEAT/LEON (1P1)/2.0 TFSI/2006.11-2011.05/BWJ, CDLD 1984 Petrol 177 kW 240 BHP (2006.11 - 2011.05) ,

- SEAT/TOLEDO III (5P2)/2.0 TFSI/2005.11-2009.05/BWA 1984 Petrol 147 kW 200 BHP (2005.11 - 2009.05) ,

- Volkswagen/CADDY III (2KA, 2KH, 2CA, 2CH)/1.9 TDI 4motion/2008.11-2010.08/BLS 1896 Diesel 77 kW 105 BHP (2008.11 - 2010.08) ,

- Volkswagen/CADDY III (2KA, 2KH, 2CA, 2CH)/2.0 TDI 16V 4motion/2010.11-2015.05/CFHC 1968 Diesel 103 kW 140 BHP (2010.11 - 2015.05) ,

- Volkswagen/CADDY III (2KA, 2KH, 2CA, 2CH)/2.0 TDI 4motion/2010.12-2015.05/CFHE 1968 Diesel 62 kW 85 BHP (2010.12 - 2015.05) ,

- Volkswagen/CADDY III (2KA, 2KH, 2CA, 2CH)/2.0 TDI 4motion/2010.08-2015.05/CFHF 1968 Diesel 81 kW 110 BHP (2010.08 - 2015.05) ,

- Volkswagen/CADDY III (MPV) (2KB, 2KJ, 2CB,/2.0 TDI 16V 4motion/2010.11-2015.05/CFHC 1968 Diesel 103 kW 140 BHP (2010.11 - 2015.05) ,

- Volkswagen/CADDY III (MPV) (2KB, 2KJ, 2CB,/2.0 TDI 4motion/2010.08-2015.05/CFHF 1968 Diesel 81 kW 110 BHP (2010.08 - 2015.05) ,

- Volkswagen/CADDY IV (MPV) (SAB, SAJ)/2.0 TDI 4motion/2015.05-2020.09/CFHF, CLCA 1968 Diesel 81 kW 110 BHP (2015.05 - 2020.09) ,

- Volkswagen/CADDY IV (SAA, SAH)/2.0 TDI 4motion/2015.05-2020.09/CFHF, CLCA 1968 Diesel 81 kW 110 BHP (2015.05 - 2020.09) ,

- Volkswagen/EOS (1F7, 1F8)/2.0 TFSI/2006.03-2008/BWA, BPY, CAWB, CCTA, CBFA, CCZA 1984 Petrol 147 kW 200 BHP (2006.03 - 2008) ,

- Volkswagen/GOLF V/1.9 TDI 4motion/2004.08-2008.11/BKC, BLS, BXE 1896 Diesel 77 kW 105 BHP (2004.08 - 2008.11) ,

- Volkswagen/GOLF V/2.0 GTI/2004.10-2009.02/AXX, BWA, BPY, CAWB, CCTA, CBFA 1984 Petrol 147 kW 200 BHP (2004.10 - 2009.02) ,

- Volkswagen/GOLF V/2.0 GTI/2006.09-2008.12/BYD 1984 Petrol 169 kW 230 BHP (2006.09 - 2008.12) ,

- Volkswagen/GOLF V/2.0 TDI 16V 4motion/2004.08-2008.11/BKD 1968 Diesel 103 kW 140 BHP (2004.08 - 2008.11) ,

- Volkswagen/GOLF V/2.0 TDI 4motion/2007.01-2008.11/BMM 1968 Diesel 103 kW 140 BHP (2007.01 - 2008.11) ,

- Volkswagen/GOLF V Variant/2.0 TFSI/2007.06-2009.07/BWA, CAWB, CCTA, CBFA 1984 Petrol 147 kW 200 BHP (2007.06 - 2009.07) ,

- Volkswagen/GOLF VI/2.0 R 4motion/2009.11-2011.05/CDLA 1984 Petrol 195 kW 265 BHP (2009.11 - 2011.05) ,

- Volkswagen/GOLF VI/2.0 R 4motion/2009.11-2013.11/CDLC, CRZA 1984 Petrol 188 kW 256 BHP (2009.11 - 2013.11) ,

- Volkswagen/GOLF VI/2.0 R 4motion/2009.11-2012.11/CDLF 1984 Petrol 199 kW 270 BHP (2009.11 - 2012.11) ,

- Volkswagen/GOLF VI/2.0 TDI 4motion/2009.05-2012.11/CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2009.05 - 2012.11) ,

- Volkswagen/GOLF VI Variant/1.6 TDI 4motion/2009.07-2013.07/CAYC 1598 Diesel 77 kW 105 BHP (2009.07 - 2013.07) ,

- Volkswagen/JETTA III (1K2)/2.0 TFSI/2005.10-2010.10/AXX, BWA, BPY, CAWB, CCTA, CBFA 1984 Petrol 147 kW 200 BHP (2005.10 - 2010.10) ,

- Volkswagen/PASSAT ALLTRACK B7 (365)/2.0 TDI 4motion/2012.01-2014.12/CFFB 1968 Diesel 103 kW 140 BHP (2012.01 - 2014.12) ,

- Volkswagen/PASSAT B6 (3C2)/2.0 BlueTDI/2009.01-2010.11/CBAC 1968 Diesel 105 kW 143 BHP (2009.01 - 2010.11) ,

- Volkswagen/PASSAT B6 (3C2)/2.0 TDI 16V 4motion/2005.03-2010.08/BKP, CBAB 1968 Diesel 103 kW 140 BHP (2005.03 - 2010.08) ,

- Volkswagen/PASSAT B6 (3C2)/2.0 TDI 4motion/2005.03-2009.05/BMP 1968 Diesel 103 kW 140 BHP (2005.03 - 2009.05) ,

- Volkswagen/PASSAT B6 (3C2)/2.0 TFSI/2005.07-2010.07/AXX, BWA, BPY, CAWB, CCTA, CBFA, CCZA 1984 Petrol 147 kW 200 BHP (2005.07 - 2010.07) ,

- Volkswagen/PASSAT B6 Variant (3C5)/2.0 BlueTDI/2009.01-2010.11/CBAC 1968 Diesel 105 kW 143 BHP (2009.01 - 2010.11) ,

- Volkswagen/PASSAT B6 Variant (3C5)/2.0 TDI 16V 4motion/2005.08-2010.11/BKP, CBAB 1968 Diesel 103 kW 140 BHP (2005.08 - 2010.11) ,

- Volkswagen/PASSAT B6 Variant (3C5)/2.0 TDI 4motion/2005.08-2009.05/BMP 1968 Diesel 103 kW 140 BHP (2005.08 - 2009.05) ,

- Volkswagen/PASSAT B6 Variant (3C5)/2.0 TFSI/2005.08-2010.11/AXX, BWA, BPY, CAWB, CCTA, CBFA, CCZA 1984 Petrol 147 kW 200 BHP (2005.08 - 2010.11) ,

- Volkswagen/PASSAT B7 (362)/2.0 TDI 4motion/2010.08-2014.12/CFFB 1968 Diesel 103 kW 140 BHP (2010.08 - 2014.12) ,

- Volkswagen/PASSAT B7 Variant (365)/2.0 TDI 4motion/2010.08-2014.12/CFFB 1968 Diesel 103 kW 140 BHP (2010.08 - 2014.12) ,

- Volkswagen/PASSAT CC B6 (357)/2.0 TDI 4motion/2009.08-2012.01/CBAB, CFFB 1968 Diesel 103 kW 140 BHP (2009.08 - 2012.01) ,

- Volkswagen/PASSAT CC B6 (357)/2.0 TDI 4motion/2009.11-2012.01/CBBB, CFGB 1968 Diesel 125 kW 170 BHP (2009.11 - 2012.01) ,

- Volkswagen/SCIROCCO III (137, 138)/2.0 R/2009.11-2017.11/CDLA 1984 Petrol 195 kW 265 BHP (2009.11 - 2017.11) ,

- Volkswagen/SCIROCCO III (137, 138)/2.0 R/2009.11-2017.11/CDLC 1984 Petrol 188 kW 256 BHP (2009.11 - 2017.11) ,

- Volkswagen/TIGUAN (5N_)/2.0 TDI 4motion/2007.09-2018.07/CBAB, CFFB, CLJA 1968 Diesel 103 kW 140 BHP (2007.09 - 2018.07) ,
